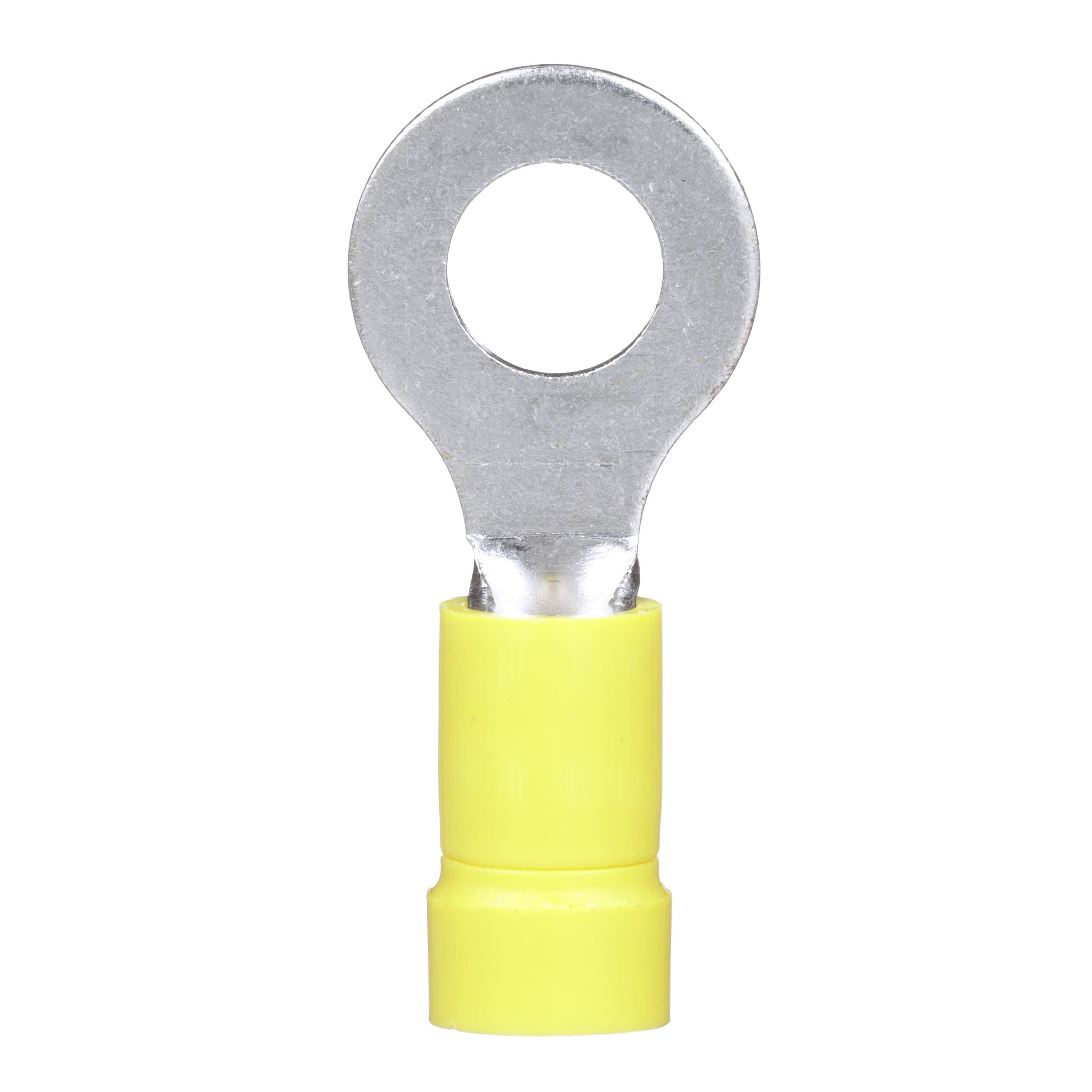

PV10-56R-L Panduit Electronic Components

Product Details

• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
• For Use With
  CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
• Packaging Type
  Bottle
• Product Type
  Loose Piece Ring Terminal
• Tongue Width (mm)
  13.2
• Overall Width (mm)
  13.2
• Tongue Width (In.)
  0.52
• Tongue Thickness (mm)
  1
• Tongue Thickness (In.)
  0.04
• Overall Length (mm)
  31.2
• Overall Width (In.)
  0.52
• Overall Length (In.)
  1.23
• Sub Brand
  Pan-Term®
• Seam Type
  Brazed
• Maximum Wire Insulation Diameter (mm)
  5.8
• Maximum Operating Temperature (°F)
  221
• Maximum Wire Insulation Diameter (In.)
  0.23
• Maximum Operating Temperature (°C)
  105
• Flammability Rating
  UL94V-0
• Barrel Type
  Funnel
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
0.6
Color Code
Yellow
Maximum Voltage (V)
600
Standards Met
UL 486A/B, and CSA 22.2 No.65
Wire Strip Length (mm)
7.9
Base Material
Copper
Wire Strip Length (In.)
5/16
Minimum Metric Conductor Size (mm²)
4
Maximum Metric Conductor Size (mm²)
6
Maximum Copper Conductor Size (AWG STR)
#10
Minimum Copper Conductor Size (AWG SOL)
#12
Minimum Copper Conductor Size (AWG STR)
#12
Maximum Wire Size (AWG)
#10
Minimum Wire Size (AWG)
#12
Maximum Copper Conductor Size (AWG SOL)
#10
Insulation Material
Vinyl
Stud Hole Size (In.)
5/16

Related documents PV10-56R-L Specs
