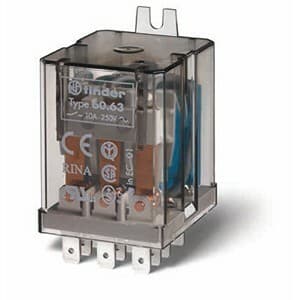

60.63.8.024.0000 Finder Control Relays

60.63.8.024.0000 on Powermatic Associates
Finder

Part#:60.63.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

General purpose electromechanical relay - Finder (60 series) - Control coil voltage 24Vac (50Hz/60Hz) - 3 poles (3P) - 3C/O / 3PDT (3 Pole Double Throw) contact - Rated current 10A (250Vac; AC-1) / 10A (30Vdc; DC-1) - Rated switching power 500VA (230Vac;

Product Details

  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Primary brand
    Finder
  • Poles
    3 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC CE EN 60664-1 EN 61000-4-5 EN 61810-1
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.4A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Power consumption
    1.3 W
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    Plug-in Soldering
  • Electrical durability (with load)
    200 000 operations
  • Rated impulse voltage (Uimp)
    3.6 kV
  • Product series / family name
    60 series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1) 1.3W
  • Ambient air temperature for operation
    -40...+70 °C
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

60.63.8.024.0000 Related Documents

Finder - 60 Series - Catalogue.pdf
