55.32.9.024.0040 Finder Control Relays

55.32.9.024.0040 on Powermatic Associates
Finder

Part#:55.32.9.024.0040

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

In-stock parts: 2

Dec 7, 2024

Finder 55.32.9.024.0040 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a communication protocol of type C, has a rated voltage for AC operations, and is protected up to 250Vac with a control voltage tolerance of 4 kV. It is designed for plug-in mounting, with dimensions of 37.2 mm in net depth, 27.7 mm in mounting mode width, and 20.7 mm in power consumption depth. The relay is rated for 2 poles, with a residual current sensitivity for up to 200,000 operations, and a mechanical endurance of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 55.32.9.024.0040 Finder price in the box on the right side or send a quick quote.

Product Details

  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Mounting mode
    Plug-in
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Width (mm)
    27.7 mm
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    2 Pole(s)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Depth (mm)
    20.7 mm
  • Product series / family name
    55 Series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Ambient air temperature for operation
    -40...+85 °C
  • Mechanical durability (at no load)
    50 000 000 operations
  • Main function
    Relay
  • Control Voltage (DC)
    24Vdc
  • Net Height (mm)
    37.2 mm
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 55.32.9.024.0040 Specs

55.32.9.024.0040 Finder - 55 Series - Catalogue.pdf

This item can ship within 24h!

Manufacturer warranty

$10.49

Stock:

2

Select Qty:

$10.49

$10.49 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

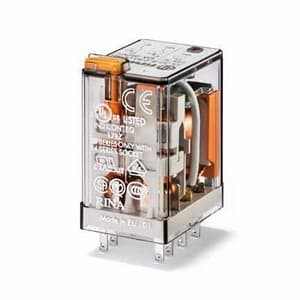

55.32.9.024.0080 on Powermatic Associates
