Powermatic Associates Logo

39.31.3.125.5060 Finder Control Relays

39.31.3.125.5060 on Powermatic Associates
Finder

Part#:39.31.3.125.5060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

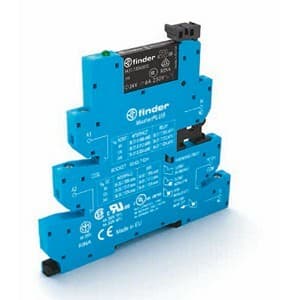

Finder 39.31.3.125.5060 is a relay designed for various applications, featuring a box-clamp connection type. It supports a rated current of 6A at 250Vac for AC-1 and 6A at 30Vdc, with a reduced current capacity of 0.2A at 110Vdc and 0.12A at 220Vdc for DC-1 operations. The relay is equipped with Normally Open (NO) auxiliary contacts and is designed for a supply voltage of 1C/O / SPDT (Single Pole Double Throw). It operates efficiently within an ambient air temperature range specified for both operation and storage, with a maximum of 300VA at 230Vac for AC-15 and 1500VA at 250Vac for AC-1. The relay is designed for mounting on a DIN rail or through plug-in, with a net depth of 6 kV and a control voltage of 125Vac at 50Hz/60Hz. It features a single pole configuration and has a power consumption specification for 1 Pole(s). The electrical durability under load is classified as MasterPLUS, and the mechanical durability at no load is enhanced by AgNi+Au (Gold plated silver-nickel) contacts, ensuring longevity and stability in performance. The protected poles are compliant with EN61984 standards.

Product Details

  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Contents
    (Socket) 93.63.3.125 (Relay) 34.51.7.060.5010
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Main function
    Relay
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Width (mm)
    6.2 mm
  • Sub-range name
    MasterPLUS
  • Connection type
    Box-clamp
  • Compliant with standard(s)
    cURus RINA CSA VDE EAC CE EN 60664-1 EN 60715 EN 61984
  • Mounting location
    EN61984
  • Product series / family name
    39 series
  • Control Voltage (AC)
    125Vac (50Hz/60Hz)
  • Mounting mode
    DIN rail Plug-in
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

39.31.3.125.5060 Related Documents

Finder - 39 Series - Catalogue.pdf
