39.30.0.125.9024 Finder Control Relays

39.30.0.125.9024 on Powermatic Associates
Finder

Part#:39.30.0.125.9024

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

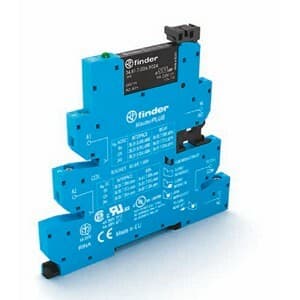

Finder 39.30.0.125.9024 is a Solid State Relay (SSR) designed with a single Normally Open (NO) circuit and utilizes box-clamp connection type. It is rated for a current of 6A at 24Vdc in DC-1 design and supports a control voltage range of 110Vdc to 125Vdc, as well as 110Vac to 125Vac. This SSR features a net width of 6.2 mm and is equipped with a single pole (1 Pole). It is designed for DIN rail and plug-in mounting, adhering to the EN61984 mounting location standards. The component employs DC switching technology and is part of the MasterPLUS sub-range.

Product Details

  • Main function
    Solid State Relay (SSR)
  • Rated current
    6A (24Vdc; DC-1)
  • Control Voltage (AC)
    110Vac-125Vac
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Sub-range name
    MasterPLUS
  • Control Voltage (DC)
    110Vdc-125Vdc
  • Contents
    (Socket) 93.63.0.125 (Relay) 34.81.7.060.9024
  • Mounting location
    EN61984
  • Rated Voltage (DC)
    24Vdc (load)
  • Mounting mode
    DIN rail Plug-in
  • Compliant with standard(s)
    cURus EAC CE EN 60664-1 EN 60715 EN 61984
  • Net Width (mm)
    6.2 mm
  • Product series / family name
    39 series
  • Poles
    1 Pole(s)
  • Technology used in component
    DC switching capability
  • Primary brand
    Finder
  • Connection type
    Box-clamp
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
