39.30.0.024.9024 Finder Control Relays

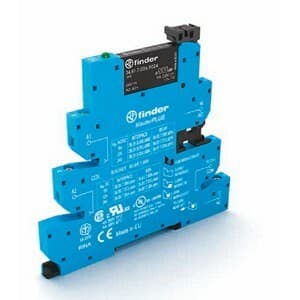

Finder 39.30.0.024.9024 Finder 39.30.0.024.9024 is a Solid State Relay (SSR) designed for DC switching applications. It features a single Normally Open (NO) circuit with a box-clamp connection type. The SSR is rated for a current of 6A at 24Vdc (DC-1) and is designed to operate with a control voltage of 24Vdc and also supports a control voltage of 24Vac (50Hz/60Hz) for versatile application. It has a net width of 6.2 mm and is equipped with 1 Pole. The design is specified for 24Vdc load conditions and is capable of Single Pole Single Throw - Normally Open (SPST-NO) operation. This component is part of the MasterPLUS sub-range and is intended for mounting on DIN rails or through plug-in, in locations compliant with EN61984 standards.

Finder

Part#:39.30.0.024.9024

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

Finder 39.30.0.024.9024 is a Solid State Relay (SSR) designed for DC switching applications. It features a single Normally Open (NO) circuit with a box-clamp connection type. The SSR is rated for a current of 6A at 24Vdc (DC-1) and is designed to operate with a control voltage of 24Vdc and also supports a control voltage of 24Vac (50Hz/60Hz) for versatile application. It has a net width of 6.2 mm and is equipped with 1 Pole. The design is specified for 24Vdc load conditions and is capable of Single Pole Single Throw - Normally Open (SPST-NO) operation. This component is part of the MasterPLUS sub-range and is intended for mounting on DIN rails or through plug-in, in locations compliant with EN61984 standards.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 39.30.0.024.9024 Finder price in the box on the right side or send a quick quote.

Product Details

Main function
Solid State Relay (SSR)
Poles
1 Pole(s)
Contacts type
1NO / SPST-NO (Single Pole Single Throw - Normally Open)
Rated Voltage (DC)
24Vdc (load)
Number of Normally Open (NO) circuits
1 NO Pole(s)
Net Width (mm)
6.2 mm
Product series / family name
39 series
Connection type
Box-clamp
Mounting mode
DIN rail Plug-in
Contents
(Socket) 93.63.0.024 (Relay) 34.81.7.024.9024
Primary brand
Finder
Rated current
6A (24Vdc; DC-1)
Control Voltage (DC)
24Vdc
Technology used in component
DC switching capability
Sub-range name
MasterPLUS
Control Voltage (AC)
24Vac (50Hz/60Hz)
Compliant with standard(s)
cURus EAC CE EN 60664-1 EN 60715 EN 61984
Mounting location
EN61984

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty
