39.30.0.125.8240 Finder Control Relays

39.30.0.125.8240 on Powermatic Associates
Finder

Part#:39.30.0.125.8240

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

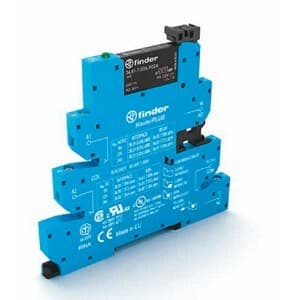

Finder 39.30.0.125.8240 is a Solid State Relay (SSR) designed for DIN rail or plug-in mounting. It features a single Normally Open (NO) circuit with a box-clamp connection type. This SSR is rated for a current of 2A at 240Vac (AC-1) and operates with a control voltage range of 110Vdc to 125Vdc for DC and 110Vac to 125Vac for AC. It has a net width of 6.2 mm and is equipped with one pole. The 39.30.0.125.8240 utilizes zero-cross switching technology, suitable for AC switching, and is part of the MasterPLUS sub-range. Its mounting location complies with EN61984 standards.

Product Details

  • Main function
    Solid State Relay (SSR)
  • Rated voltage (AC)
    240Vac
  • Mounting mode
    DIN rail Plug-in
  • Net Width (mm)
    6.2 mm
  • Primary brand
    Finder
  • Control Voltage (DC)
    110Vdc-125Vdc
  • Contents
    (Socket) 93.63.0.125 (Relay) 34.81.7.060.8240
  • Sub-range name
    MasterPLUS
  • Connection type
    Box-clamp
  • Compliant with standard(s)
    cURus EAC CE EN 60664-1 EN 60715 EN 61984
  • Product series / family name
    39 series
  • Poles
    1 Pole(s)
  • Contacts type
    1NO / SPST-NO (Single Pole Single Throw - Normally Open)
  • Technology used in component
    Zero-cross switching capability (for AC switching)
  • Rated current
    2A (240Vac; AC-1)
  • Control Voltage (AC)
    110Vac-125Vac
  • Number of Normally Open (NO) circuits
    1 NO Pole(s)
  • Mounting location
    EN61984

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
