Powermatic Associates Logo

38.51.7.048.0050 Finder Control Relays

38.51.7.048.0050 on Powermatic Associates
Finder

Part#:38.51.7.048.0050

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

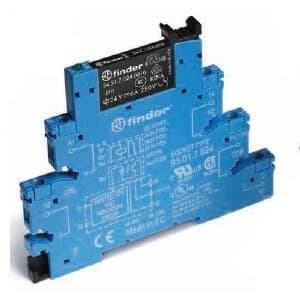

Plug-in electromechanical interface relay module pre-assembled with socket base and ejector - Finder (38 series) - Control coil voltage 48Vdc - 1 pole (1P) - 1C/O / SPDT (Single Pole Double Throw) contact - Rated current 6A (250Vac; AC-1) / 6A (30Vdc; DC-

Product Details

  • Product series / family name
    38 series
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Control Voltage (DC)
    48Vdc
  • Net Width (mm)
    6.2 mm
  • Primary brand
    Finder
  • Mounting mode
    DIN rail Plug-in
  • Rated impulse voltage (Uimp)
    4 kV
  • Mounting location
    EN61984
  • Main function
    Relay
  • Poles
    1 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Contents
    (Socket) 93.01.7.060 (Relay) 34.51.7.048.0050
  • Rated voltage (AC)
    250Vac
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Technology used in component
    sensitive DC control coil
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Connection type
    Box-clamp
  • Degree of protection
    IP20
  • Compliant with standard(s)
    cURus RINA IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
