38.51.7.012.5050 Finder Control Relays

38.51.7.012.5050 on Powermatic Associates
Finder

Part#:38.51.7.012.5050

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

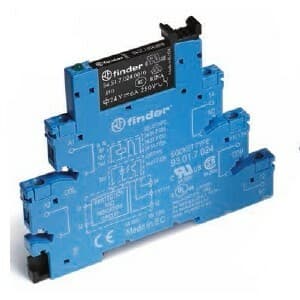

Finder 38.51.7.012.5050 is a relay designed with a box-clamp connection type, supporting a rated current of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), capable of handling ambient air temperatures for operation and storage from -40 to +70 degrees Celsius. The relay features a rated voltage of 250Vac, a control voltage of 4 kV, and is designed for mounting on a DIN rail or through plug-in, with a net width of 6.2 mm and designed for a single pole (1 Pole(s)). It includes protection functions rated at 250Vac, with a sensitive DC control coil, and conforms to EN61984 standards. The contact material is AgNi+Au (Gold plated silver-nickel), ensuring compatibility with a wide range of applications.

Product Details

  • Main function
    Relay
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Contents
    (Socket) 93.01.7.024 (Relay) 34.51.7.012.5050
  • Product series / family name
    38 series
  • Control Voltage (DC)
    12Vdc
  • Degree of protection
    IP20
  • Mounting location
    EN61984
  • Primary brand
    Finder
  • Poles
    1 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    DIN rail Plug-in
  • Technology used in component
    sensitive DC control coil
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Connection type
    Box-clamp
  • Rated voltage (AC)
    250Vac
  • Compliant with standard(s)
    cURus RINA IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
  • Net Width (mm)
    6.2 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
