38.51.0.024.0060 Finder Control Relays

38.51.0.024.0060 on Powermatic Associates
Finder

Part#:38.51.0.024.0060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Get a quick Quote!

Finder 38.51.0.024.0060 is a relay designed for various applications, featuring a box-clamp connection type. It supports a rated current of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. The supply voltage is specified as 1C/O / SPDT (Single Pole Double Throw), with an ambient air temperature for operation at 300VA (230Vac, AC-15) and for storage at 1500VA (250Vac, AC-1). It operates within an ambient temperature range of -40 to +70 degrees Celsius and adheres to the communication protocol C. The net width is 24Vdc, and it offers protection functions at 250Vac with a control voltage (AC) of 4 kV. The mounting mode is specified at 6.2 mm for a 1 Pole design, with a color code of 24Vac (50Hz/60Hz). It is designed for DIN rail or plug-in mounting, meets EN61984 standards, and is constructed with AgNi (Silver Nickel) contacts. The relay is IP20 rated, indicating protection against solid objects larger than 12.5 mm but not against liquids.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Powermatic Associates site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 38.51.0.024.0060 Finder price in the box on the right side or send a quick quote.

Product Details

  • Primary brand
    Finder
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Rated voltage (AC)
    250Vac
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Ambient air temperature for operation
    -40...+70 °C
  • Net Width (mm)
    6.2 mm
  • Main function
    Relay
  • Connection type
    Box-clamp
  • Degree of protection
    IP20
  • Contacts coating
    AgNi (Silver Nickel)
  • Product series / family name
    38 series
  • Control Voltage (DC)
    24Vdc
  • Contents
    (Socket) 93.01.0.024 (Relay) 34.51.7.024.0060
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Compliant with standard(s)
    cURus RINA IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Mounting mode
    DIN rail Plug-in
  • Rated impulse voltage (Uimp)
    4 kV
  • Mounting location
    EN61984

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 38.51.0.024.0060 Specs

38.51.0.024.0060 Finder - 38 Series - Catalogue.pdf

Manufacturer warranty

$16.79

Request a quote, and we will send availability within minutes.

Select Qty:

$16.79

$16.79 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Relevant products

38.52.7.024.0050 on Powermatic Associates

38.52.7.024.0050

Verified stock: 27

Finder 38.52.7.024.0050 is a relay with a box-clamp connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw) and can handle ambient air temperatures from -40 to +70 degrees Celsius for both operation and storage. The relay is rated for 400VA at 230Vac (AC-15) and 2000VA at 250Vac (AC-1) with a control voltage of 4 kV. It features a net width of 14 mm, is designed for DIN rail or plug-in mounting, and has a sensitive DC control coil. The protection rating is IP20, and it supports a communication protocol labeled as 'C'. The relay is equipped with AgNi (Silver Nickel) contacts and conforms to EN61984 standards.

Finder

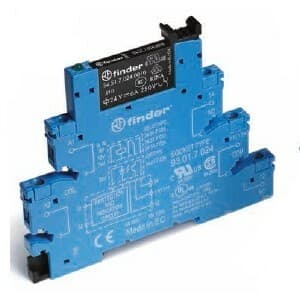

38.51.0.125.0060 on Powermatic Associates
