ELGR-TB-55-400-0H Festo Motion Controllers

ELGR-TB-55-400-0H on Powermatic Associates
Festo

Part#:ELGR-TB-55-400-0H

Manufacturer:Festo

Category:Motion Controllers

Product Lifecycle:Active

Get a quick Quote!

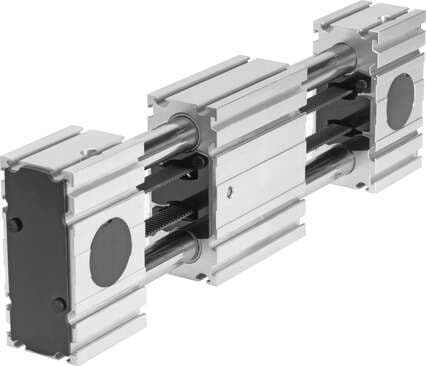

Festo ELGR-TB-55-400-0H is an electric linear actuator designed with a high-alloy stainless steel belt pulley and an anodized wrought Aluminium alloy drive cover. The profile is made from anodized high-alloy stainless steel, and the slide from anodized wrought Aluminium alloy. It features a nylon-coated polychloroprene with glass cord (PC-rubber) toothed belt and Beryllium bronze (BeCu) toothed belt clamping. This actuator operates in ambient air temperatures ranging from -10°C to +50 °C, can handle a maximum radial load of 300 N, and a maximum axial load of 350 N. It offers a speed of up to 3m/s and can accelerate up to 50m/s^2. Part of the ELGR series, this model is designed with a recirculating ball bearing guide, is toothed belt-driven, and has a size 55 design with a 400mm stroke length and a 3mm pitch. The torque is rated at 0.4Nm (no-load / minimum driving torque).

About the manufacturer: Festo is one of the manufacturers that offers Motion Controllers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the ELGR-TB-55-400-0H Festo price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

ELGR-TB-55-400-0H Description

Festo ELGR-TB-55-400-0H is an electric linear actuator designed with a high-alloy stainless steel belt pulley and an anodized wrought Aluminium alloy drive cover. The profile is made from anodized high-alloy stainless steel, and the slide from anodized wrought Aluminium alloy. It features a nylon-coated polychloroprene with glass cord (PC-rubber) toothed belt and Beryllium bronze (BeCu) toothed belt clamping. This actuator operates in ambient air temperatures ranging from -10°C to +50 °C, can handle a maximum radial load of 300 N, and a maximum axial load of 350 N. It offers a speed of up to 3m/s and can accelerate up to 50m/s^2. Part of the ELGR series, this model is designed with a recirculating ball bearing guide, is toothed belt-driven, and has a size 55 design with a 400mm stroke length and a 3mm pitch. The torque is rated at 0.4Nm (no-load / minimum driving torque).
