8083780 Festo Pneumatic Components
Part#:8083780
Alt. Part#:ELGR-TB-45-500-0H
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description
toothed belt axis ELGR-TB-45-500-0H Effective diameter of drive pinion: 24,83 mm, Working stroke: 500 mm, Size: 45, Toothed-belt stretch: 0,08 %, Toothed-belt pitch: 3 mm
Product Details
- Size 45
- Type code ELGR
- Motor type Stepper motor Servo motor
- Repetition accuracy ±0.1 mm
- Max. force Fy 100 N
- No-load driving torque 0.2 Nm
- Additional weight per 10 mm stroke 50 g
- Product weight 5730 g
- Toothed belt material Polychloroprene with glass cord and nylon coating
- Toothed belt pitch 3 mm
- Design Electromechanical linear axis with toothed belt
- Symbol 00991212
- Duty cycle 100%
- 2nd moment of area Iy 15700 mm⁴
- Max. force Fz 100 N
- Additional moving mass per 10 mm stroke 0.69 g
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Working stroke 500 mm
- Toothed belt elongation 0.08 %
- Guide Recirculating ball bearing guide
- Max. speed 1 m/s ... 3 m/s
- Degree of protection IP20
- Max. no-load resistance to shifting 16.1 N
- Mass moment of inertia JL per kg of payload 1.54 kgcm²
- Drive cover material Wrought aluminum alloy Anodized
- Mounting position Any
- Max. acceleration 50 m/s²
- Max. driving torque 1.24 Nm
- Mass moment of inertia JH per meter of stroke 0.11 kgcm²
- Reference value, running performance 5000 km
- Belt pulley material High-alloy stainless steel
- Toothed belt clamping component material Beryllium bronze
- Drive pinion effective diameter 24.83 mm
- Ambient temperature -10 °C ... 50 °C
- 2nd moment of area Iz 17940 mm⁴
- Max. feed force Fx 100 N
- Feed constant 78 mm/U
- Profile material Wrought aluminum alloy Anodized
- Slide material Wrought aluminum alloy Anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8083780 Related Documents
Similar products from: Festo Pneumatic Components
Manufacturer warranty
8083780 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 8083780 with other Pneumatic Components products
Size
Type code
Motor type
Repetition accuracy
Max. force Fy
No-load driving torque
Additional weight per 10 ...
Product weight
Toothed belt material
Toothed belt pitch
Selected product
8083780
Festo
toothed belt axis ELGR-TB-45-500-0H Effective diameter of drive pinion: 24,83 mm, Working stroke: 50...
Size45
Type codeELGR
Motor typeStepper motor Servo motor
Repetition accuracy±0.1 mm
Max. force Fy100 N
No-load driving torque0.2 Nm
Additional weight per 10 mm stroke50 g
Product weight5730 g
Toothed belt materialPolychloroprene with glass c...
Toothed belt pitch3 mm
564752
Festo

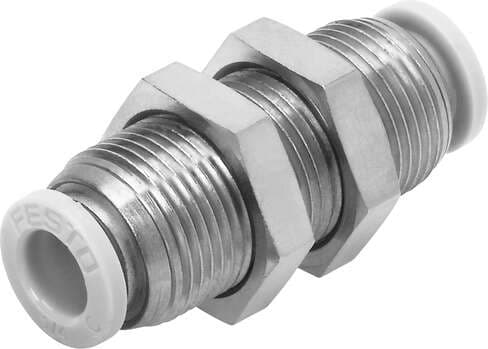

push-in bulkhead connector QBS-3/8T-U Size: Standard, Nominal size: 0,315 ", Assembly position: Any,...
SizeStandard
Type codeQBS
Motor type-
Repetition accuracy-
Max. force Fy-
No-load driving torque-
Additional weight per 10 mm stroke-
Product weight-
Toothed belt material-
Toothed belt pitch-
564795
Festo

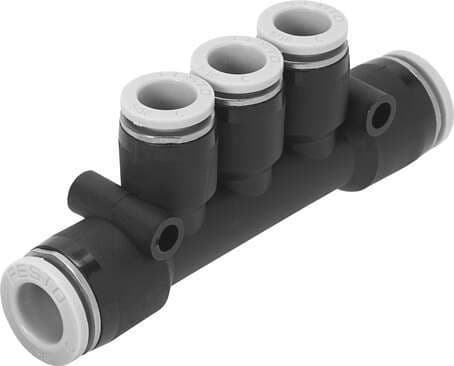

multiple distributor QBT3-3/8T-1/4-U Size: Standard, Nominal size: 0,197 ", Assembly position: Any, ...
