ELGR-TB-55-1000-0H Festo Motion Control Products

Name: ELGR-TB-55-1000-0H
Brand: Festo

ELGR-TB-55-1000-0H on Powermatic Associates

Part#:ELGR-TB-55-1000-0H

Manufacturer:Festo

Category:Motion Control Products

Product Lifecycle:Active

Product description

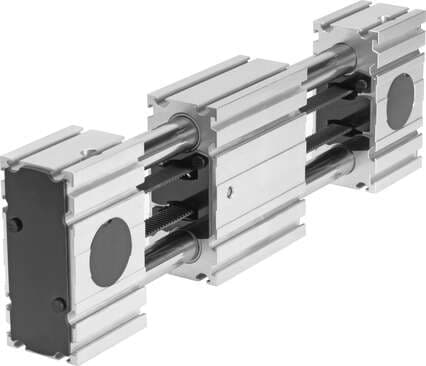

Festo ELGR-TB-55-1000-0H is an electric linear actuator designed with a high-alloy stainless steel belt pulley and an anodized wrought Aluminium alloy drive cover. It features an anodized high-alloy stainless steel profile and an anodized wrought Aluminium alloy slide. The actuator utilizes a nylon-coated polychloroprene with glass cord (PC-rubber) toothed belt and Beryllium bronze (BeCu) for toothed belt clamping. It is engineered to operate within an ambient air temperature range of -10°C to +50 °C. This model can handle a maximum radial load of 300 N and a maximum axial load of 350 N. It offers a speed range of 0.35-3m/s maximum and can accelerate up to 50m/s2. The ELGR series actuator, with a 1000mm stroke length and a 3mm pitch, is designed for electrical linear toothed belt axis actuation. It has a no-load/minimum driving torque of 0.4Nm and incorporates a recirculating ball bearing guide and a toothed belt drive, size 55. This design contains paint-wetting impairment substances.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

ELGR-TB-55-1000-0H Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

A motion controller is a device engineered to manage the order, speed, location, and force of a mechanical system.
