9624 Festo Pneumatic Fittings

9624 on Powermatic Associates
Festo

Part#:9624

Alt. Part#:AD-1/8NPT-G1/8-I

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

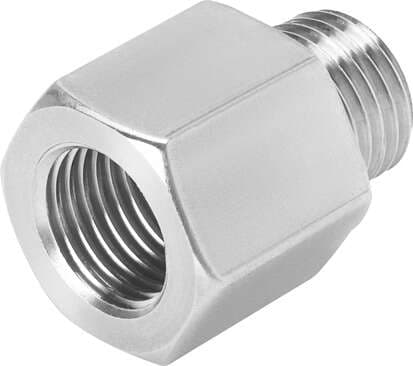

adapter AD-1/8NPT-G1/8-I Female thread one one side, male thread on the other. Nominal size: 5,95 mm, Operating pressure complete temperature range: -0,95 - 10 bar, Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -1

Product Details

  • Type code
    AD
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Max. tightening torque, pneumatic connection 2
    6 Nm
  • Nominal width
    5.95 mm
  • Product weight
    9.5 g
  • Operating pressure for entire temperature range
    -0.95 bar ... 10 bar
  • Max. tightening torque, pneumatic connection 1
    7 Nm
  • Pneumatic connection 1
    1/8 NPT
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Pneumatic connection 2
    G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
