8984 Festo Pneumatic Components

8984 on Powermatic Associates
Festo

Part#:8984

Alt. Part#:F-3-1/4-B

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

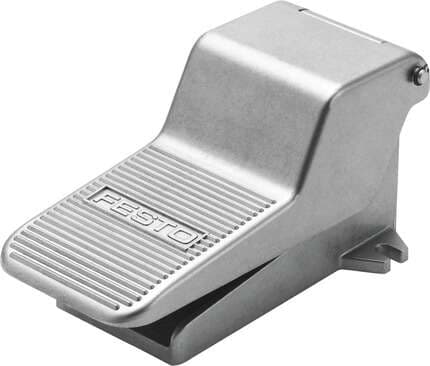

foot valve F-3-1/4-B Non-detenting. Valve function: 3/2 closed, monostable, Type of actuation: manual, Standard nominal flow rate: 600 l/min, Operating pressure: -0,95 - 10 bar, Design structure: Poppet seat

Product Details

  • Housing material
    Die-cast aluminum
  • Valve function
    3/2, closed, monostable
  • Operating pressure
    -0.95 bar ... 10 bar
  • Type of control
    Direct
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Pneumatic working port
    G1/4
  • Nominal width
    7 mm
  • Flow direction
    Non-reversible
  • Actuating force
    50 N
  • Type of mounting
    With through-hole
  • Standard nominal flow rate
    600 l/min
  • Reset method
    Mechanical spring
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pneumatic connection 1
    G1/4
  • Pneumatic connection 3
    G1/4
  • Actuation type
    Manual
  • Design
    Plate seat
  • Type code
    F
  • Symbol
    00991101
  • Product weight
    595 g
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
