8983 Festo Pneumatic Components

8983 on Powermatic Associates
Festo

Part#:8983

Alt. Part#:TH-3-1/4-B

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

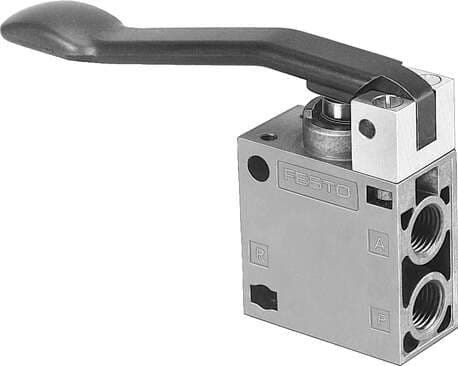

finger lever valve TH-3-1/4-B Normally closed. Valve function: 3/2 closed, monostable, Standard nominal flow rate: 600 l/min, Operating pressure: -0,95 - 10 bar, Design structure: Poppet seat, Nominal size: 7 mm

Product Details

  • Standard nominal flow rate
    600 l/min
  • Symbol
    00991297
  • Actuating force
    10.5 N
  • Pneumatic connection 3
    G1/4
  • Nominal width
    7 mm
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Pneumatic connection 2
    G¼
  • Housing material
    Die-cast aluminum
  • Type of control
    Direct
  • Ambient temperature
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Operating pressure
    -0.95 bar ... 10 bar
  • Design
    Plate seat
  • Type of mounting
    With through-hole
  • Valve function
    3/2, closed, monostable
  • Pneumatic working port
    G1/4
  • Type code
    TH
  • Product weight
    210 g
  • Pneumatic connection 1
    G1/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
