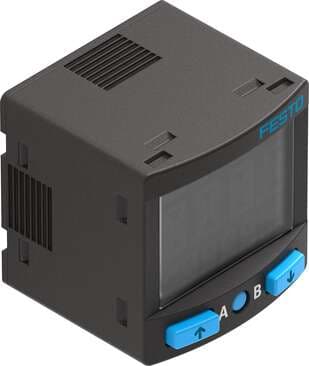

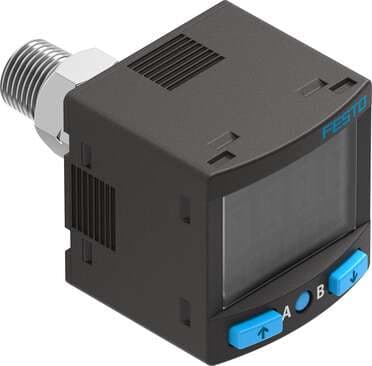

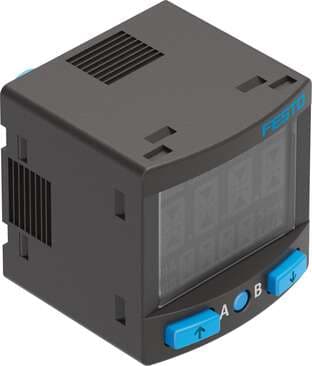

8134892 Festo Pressure Sensors

Name: 8134892
Brand: Festo

Part#:8134892

Manufacturer:Festo

Alt. Part#:SPAN-B11R-G18M-PN-PN-L1

Product Lifecycle:Active

Get a quick Quote!

pressure sensor SPAN-B11R-G18M-PN-PN-L1 Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Certificate issuing department: UL

About the manufacturer: Festo is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8134892 Festo price in the box on the right side or send a quick quote.

Product Details

Electrical connection 1, connection technology
Connection diagram L1J
Electrical connection 1, connection type
Plug
Overload pressure
217.5 psi
Certificate issuing authority
UL E322346
Method of measurement
Piezoresistive pressure sensor
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient in ± %FS/K
0.05 %FS/K
DC operating voltage range
15 V ... 30 V
Mounting position
Any
Product weight
46 g
Protection against tampering
PIN code
Electrical connection 1, number of pins/wires
4
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Switching output
2 x PNP or 2 x NPN switchable
Type of mounting
Front panel mounting With wall/surface bracket
Setting range threshold value
0 % ... 100 %
Pressure measuring range initial value
-1 bar
Certification
RCM compliance mark c UL us - Listed (OL)
Measured variable
Relative pressure

Accuracy in ± % FS

1.5 %FS

Short-circuit protection

yes

Materials in contact with the media

FPM PA-reinforced

Setting options

Teach-in Via display and pushbuttons

Type code

SPAN

KC characters

KC EMC

Max. overload pressure

15 bar

Ambient temperature

0 °C ... 50 °C

Switching element function

N/C contact/N/O contact switchable

Reverse polarity protection

for all electrical connections

Housing material

PA-reinforced

Displayable unit(s)

MPa psi

Degree of protection

IP40

Electrical connection for input 1, connection pattern

00995428

Pressure measuring range end value

10 bar

Symbol

00995686

Note on materials

RoHS-compliant

Information on operating and pilot media

Operation with oil lubrication possible

Repetition accuracy in ± %FS

0.3 %FS

Switching function

Window comparator Auto difference monitoring

Max. output current

100 mA

Pneumatic connection

External thread G1/8 Internal thread M5

Display type

Illuminated LCD

Setting range hysteresis

0 % ... 90 %

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
