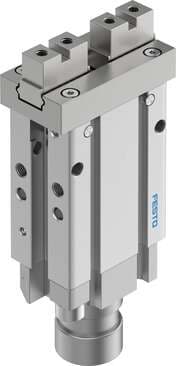

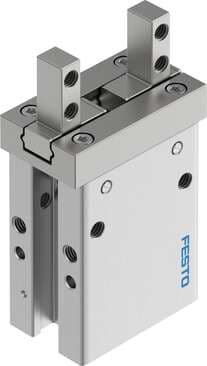

8116796 Festo Pneumatic Grippers

Product Details

• Max. gripper jaw backlash Sz
  0 mm
• Gripper function
  Parallel
• Min. opening time at 6 bar
  29 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Gripping force per gripper jaw at 6 bar, closing
  43.4 N
• Product weight
  139 g
• Housing material
  Aluminum, anodized
• Size
  16
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Guide
  Ball guide
• Total gripping force at 6 bar, closing
  86.8 N
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum torque on gripper jaw, Mx static
  0.34 Nm
• Type of mounting
  Optionally: With internal thread and dowel pin
• Pneumatic connection
  M5
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Stroke per gripper jaw
  3 mm
• Rotational symmetry
  ≤ 0.2 mm
• Number of gripper jaws
  2
• Symbol
  00997349
Min. closing time at 6 bar
11 ms
Corrosion resistance class (CRC)
0 - No corrosion stress
Operating pressure
2.5 bar ... 8 bar
Max. gripper jaw angular play ax, ay
0 deg
Mounting position
Any
Design
Connection via mounting spigot Positively driven motion sequence
Max. interchangeability
0.2 mm
Type code
DHPC
Mode of operation
Single-acting Open
Position sensing
For proximity sensor
Max. operating frequency of pneumatic gripper
3 Hz
Ambient temperature
-10 °C ... 60 °C
Mass moment of inertia
0.171 kgcm²
Maximum torque on gripper jaw, My static
0.68 Nm
Gripper jaw material
High-alloy stainless steel
Maximum force on gripper jaw Fz, static
49 N
Maximum torque on gripper jaw, Mz static
0.34 Nm
Max. mass per external gripper finger
360 g
