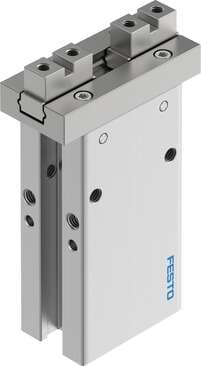

8116746 Festo Pneumatic Grippers

Product Details

• Operating pressure
  3.5 bar ... 8 bar
• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  Parallel
• Guide
  Ball guide
• Min. closing time at 6 bar
  6 ms
• Gripping force per gripper jaw at 6 bar, closing
  3.9 N
• Maximum torque on gripper jaw, Mx static
  0.02 Nm
• Max. interchangeability
  0.2 mm
• Type code
  DHPC
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  3 Hz
• Mass moment of inertia
  0.013 kgcm²
• Pneumatic connection
  M5
• Size
  6
• Max. gripper jaw backlash Sz
  0 mm
• Mounting position
  Any
• Max. gripper jaw angular play ax, ay
  0 deg
• Design
  Connection via mounting spigot Positively driven motion sequence
• Symbol
  00997349
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.02 Nm
Type of mounting
Optionally: On mounting frame
Stroke per gripper jaw
2 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Number of gripper jaws
2
Total gripping force at 6 bar, closing
7.8 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, My static
0.04 Nm
Gripper jaw material
High-alloy stainless steel
Mode of operation
Single-acting Open
Min. opening time at 6 bar
8 ms
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum force on gripper jaw Fz, static
5 N
Product weight
31 g
Housing material
Aluminum, anodized
Max. mass per external gripper finger
18 g
Note on materials
Free of copper and PTFE RoHS-compliant
