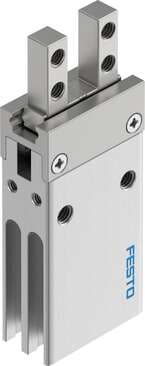

8116748 Festo Pneumatic Grippers

Product Details

• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  Parallel
• Max. interchangeability
  0.2 mm
• Number of gripper jaws
  2
• Position sensing
  For proximity sensor
• Total gripping force at 6 bar, opening
  10.4 N
• Mass moment of inertia
  0.012 kgcm²
• Maximum torque on gripper jaw, My static
  0.04 Nm
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Operating pressure
  3.5 bar ... 8 bar
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Type code
  DHPC
• Symbol
  00997348
• Min. closing time at 6 bar
  16 ms
• Ambient temperature
  -10 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  0.02 Nm
• Pneumatic connection
  M3
• Stroke per gripper jaw
  2 mm
• Max. gripper jaw backlash Sz
  0 mm
• Mounting position
  Any
Guide
Ball guide
Max. operating frequency of pneumatic gripper
3 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum torque on gripper jaw, Mx static
0.02 Nm
Type of mounting
Optionally: Direct fastening via thread
Size
6
Max. gripper jaw angular play ax, ay
0 deg
Mode of operation
Single-acting Closed
Min. opening time at 6 bar
16 ms
Maximum force on gripper jaw Fz, static
5 N
Product weight
27 g
Gripper jaw material
High-alloy stainless steel
Design
Connection direction at side Positively driven motion sequence
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Gripping force per gripper jaw at 6 bar, opening
5.2 N
Max. mass per external gripper finger
18 g
Housing material
Aluminum, anodized
