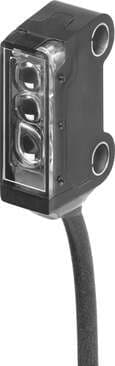

8075667 Festo Retroreflective Sensors

Product Details

• Electrical connection 1, connection type
  Plug
• Electrical connection 1, number of pins/wires
  3
• Working range
  0 mm ... 3500 mm
• Switching element function
  Switchable NPN, bright-switching
• IO-Link®, protocol version
  Device V 1.1
• IO-Link®, minimum cycle time
  2.3 ms
• DC operating voltage range
  10 V ... 30 V
• Type of mounting
  With through-hole for M3 screw
• Degree of protection
  IP65 IP69K
• Type code
  SOOE
• Electrical connection for input 1, connection pattern
  00991155
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Reference material
  Reference reflector
• Max. output current
  100 mA
• IO-Link®, SIO mode support
  Yes
• IO-Link®, process data content OUT
  1 bit (emitter disable) 1 bit (hold)
• IO-Link®, data memory required
  2000 byte
• Reverse polarity protection
  for all electrical connections
• Product weight
  10 g
• Insulation voltage
  500 V
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Design
Block design
Measuring principle
Optoelectronic
Max. light spot
300 mm at 3500 mm
Short-circuit protection
Pulsed
IO-Link®, port class
A
IO-Link®, process data width IN
2 bit
IO-Link®, process data content IN
1 bit (stability alarm) 1 bit SSC (switching signal)
Material of pin contacts
Brass, gold-plated
Housing material
PC PMMA
Switching status indication
LED yellow
Contamination level
3
Conforms to standard
EN 60947-5-2
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Type of light
Red LED
Timer function
Via IO-Link®
Voltage drop
0 V ... 1.5 V
IO-Link®, process data width OUT
2 bit
Residual ripple
10 %
Tightening torque
0.8 Nm
Ready status indication
LED green
Surge resistance
1 kV
Certificate issuing authority
UL E232949
Detection method
Reflection light barrier for transparent objects
Symbol
00995956
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Ambient temperature
-20 °C ... 60 °C
Switching output
Push-pull
Max. switching frequency
500 Hz
Protocol
IO-Link®
IO-Link®, communication mode
COM2 (38,4 kBd)
Idle current
25 mA
Mounting position
Any
Setting options
IO-Link® Teach-in
Function reserve indication
LED yellow, flashing
Corrosion resistance class (CRC)
1 - Low corrosion stress
