8066466 Festo Electronic Components

8066466 on Powermatic Associates
Festo

Part#:8066466

Alt. Part#:SBPB-R2B-U3-1E1A-C

Manufacturer:Festo

Category:Electronic Components

Product Lifecycle:Active

Product description

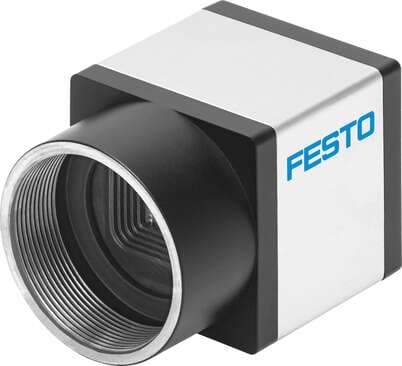

camera head SBPB-R2B-U3-1E1A-C Sensor resolution: 1280 x 1024 Pixel (SXGA), Lens attachment : C-Mount, Field of vision: Dependent on the selected lens, Width: 29 mm, Height: 29 mm

Product Details

  • KC characters
    KC EMC
  • Lens attachment
    C mount
  • Length
    49 mm
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Ambient conditions
    Shielding against the effects of extreme extraneous light Dry
  • Sensor type
    Monochrome
  • USB interface, function
    Power supply Communication
  • USB interface
    USB 3.0 type B micro
  • Electrical power consumption
    1.3 W ... 1.5 W
  • Width
    29 mm
  • Ambient temperature
    0 °C ... 40 °C
  • Type code
    SBPB
  • Sensor resolution
    1280 x 1024 pixels (SXGA)
  • Nominal operating voltage DC
    5 V
  • Storage temperature
    -20 °C ... 60 °C
  • Frame rate (full image)
    60 fps
  • USB interface, number of poles/wires
    10
  • Type of mounting
    With mounting kit
  • Field of view
    Depending on lens selected
  • Degree of protection
    IP30
  • Product weight
    52 g
  • Exposure time
    9 µs ... 2000000 µs
  • Input/output interface, function
    Without function
  • Relative air humidity
    20 - 80 %
  • Height
    29 mm
  • Permissible voltage fluctuations
    +/- 5%
  • Note on degree of protection
    In mounted state
  • Working distance
    Depending on lens selected
  • USB-interface, connection type
    Socket
  • Housing material
    Wrought aluminum alloy, anodized
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
