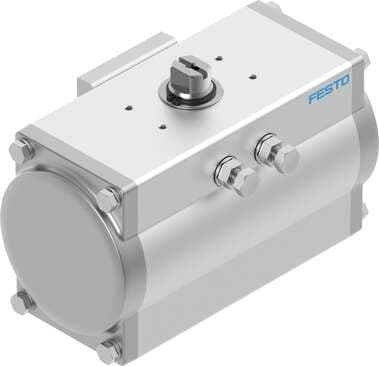

8066415 Festo Quarter Turn Actuators


Part#:8066415
Alt. Part#:DFPD-N-300-RP-90-RD-F0710
Manufacturer:Festo
Category:Quarter Turn Actuators
Product Lifecycle:Active
Product description
semi-rotary drive DFPD-N-300-RP-90-RD-F0710 double-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to fitting ISO 5211, NPT control air connection
Product Details
- Flange hole pattern F0710
- Swivel angle 90 deg
- Operating pressure 2 bar ... 8 bar
- Nominal operating pressure 5.5 bar
- PFH 1.01E-7
- Safety function The fundamental safety function is the execution of a complete working stroke (opening and closing of the process valve) within a defined time.
- End-position adjusting range at 0° -5 deg ... 5 deg
- Standard connection for valve ISO 5211
- Symbol 00991265
- Type of ignition protection for gas Ex h IIC T4 Gb X
- Cover material Die-cast aluminum, coated
- Material of bearing POM
- Size of valve actuator 300
- Devices type according to VDMA 66413 Safety device
- Maritime classification See certificate
- End-position adjusting range at nominal swivel angle -5 deg ... 5 deg
- Closing direction Clockwise closing
- Type of (ignition) protection for dust Ex h IIIC T105°C Db X
- Certificate issuing authority DNVGL TAP00001CE German Technical Control Board (TÜV) Rheinland 968/V 1106.00/19
- Information on operating and pilot media Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
- Storage temperature -20 °C ... 60 °C
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Pneumatic connection 1/4 NPT
- Seals material NBR
- Shaft material Steel, nickel-plated
- MTTFd 1126 years
- Mounting position Any
- Depth shaft connection 24 mm
- Mode of operation Double-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Explosive ambient temperature -20°C <= Ta <= +80°C
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Torque at nominal operating pressure and 90° swivel angle 301.9 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 26.4 l
- Material of piston Die-cast aluminum
- Safety integrity level (SIL) Up to SIL 2 low demand mode up to SIL 1 high demand mode
- Certified for safety function to ISO 13849 and IEC 61508 (SIL) Product can be used in safety-related parts of control systems up to SIL 2, low demand up to SIL 3 in a redundant architecture
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Shaft connection T22
- Material of sub-base Wrought aluminum alloy, anodized
- Note on materials RoHS-compliant
- Material of screws High-alloy stainless steel
- Type code DFPD
- Design Gear rack/pinion
- Connection for valve positioner and position sensor conforms to standard VDI/VDE 3845 size AA 2
- ATEX category for dust II 2D
- Ambient temperature -20 °C ... 80 °C
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Torque at nominal operating pressure and 0° swivel angle 301.9 Nm
- PFD 0.00142
- Product weight 11224 g
- Housing material Wrought aluminum alloy, anodized
- Cam material Steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
