8025712 Festo Pneumatic Components

8025712 on Powermatic Associates
Festo

Part#:8025712

Alt. Part#:VFFG-T-M5-8

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

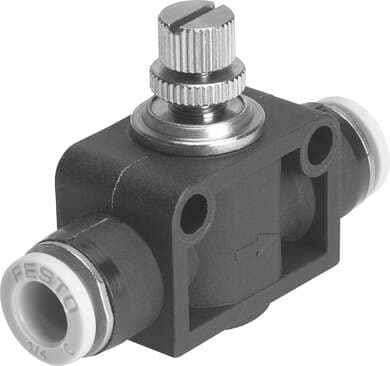

flow control VFFG-T-M5-8 Valve function: Throttle function, Mounting type: with thread, Standard nominal flow rate in flow control direction: 26,1 l/min, Operating pressure: -0,9 - 10 bar, Ambient temperature: -5 - 60 °C

Product Details

  • Valve function
    Flow control function
  • Nominal width
    0.85 mm
  • C value
    0.1 l/sbar
  • Hollow bolt material
    PA
  • Type code
    VFFG
  • Operating pressure
    -0.9 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Standard nominal flow rate in flow control direction
    26.1 l/min
  • b-value
    0.5
  • Storage temperature
    -20 °C ... 60 °C
  • Product weight
    0.5 g
  • Type of mounting
    With thread
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -5 °C ... 60 °C
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8025712 Related Documents

8025712 DataSheet.pdf
