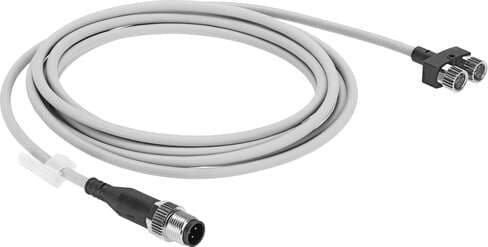

8005301 Festo Cable Assemblies

Product Details

• Based on norm
  EN 61076-2-101 EN 61076-2-104
• Design
  Y-distributor with cable on controller side
• Product weight
  86 g
• Electrical connection 1, number of pins/wires
  4
• Electrical connection 2, cable outlet
  Straight
• Current rating at 40°C
  3 A
• Explosion prevention and protection
  Observe the information on the certificate Zone 22 (ATEX)
• Cable designation
  With label holder
• Electrical connection 1, connection type
  Plug
• Electrical connection for input 1, connection pattern
  00995386
• Electrical connection 2, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Electrical connection 2, connection pattern
  00991871
• Surge resistance
  0.8 kV
• Electrical connection 2, occupied pins/wires
  3
• Connector cable test conditions
  Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
• Ambient temperature
  -25 °C ... 80 °C
• Storage temperature
  -25 °C ... 80 °C
• Color cable sheath
  Gray
• Seals material
  NBR
• Type code
  NEDY
Distributor type
2 to 1
Electrical connection 1, function
Control side
Electrical connection 1, connection technology
M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, design
Round
Operating voltage range AC
0 V ... 30 V
Nominal conductor cross section
0.25 mm²
Note on ambient temperature
-10 - 40 °C when mounted via through-hole
CE marking (see declaration of conformity)
As per EU RoHS directive
Material of cable sheath
TPE-U(PUR)
Material of pin contacts
Copper alloy, gold-plated
Type of mounting
With through-hole for M2 screw With accessories
Electrical connection 1, design
Round
Electrical connection 1, cable outlet
Straight
Electrical connection 1, occupied pins/wires
4
Electrical connection 2, connection type
2x socket
Cable characteristic
Suitability for energy chains/robot applications
Bending radius 1, flexible cable installation
46 mm
Ambient temperature with flexible cable installation
-20 °C ... 80 °C
Housing material
PC TPE-U(PUR)
Threaded sleeve material
Brass, nickel-plated
Electrical connection 2, function
Field device end
Electrical connection 2, number of pins/wires
3
DC operating voltage range
0 V ... 30 V
Cable length 1
2.5 m
Cable diameter 1
4.5 mm
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Degree of protection
IP65 IP69K
Contamination level
3
Housing colour
Black
Material of union nut
Brass, nickel-plated
