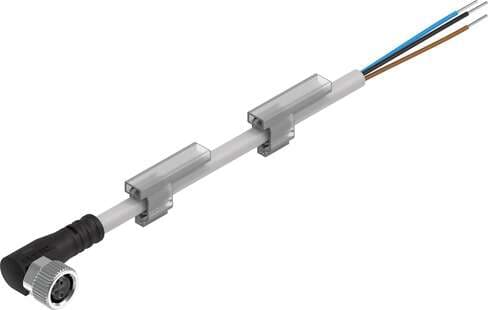

541338 Festo Cable Assemblies

Product Details

• Type code
  NEBU
• Product weight
  64 g
• Electrical connection 1, number of pins/wires
  3
• Electrical connection 2, connection type
  Cable
• DC operating voltage range
  0 V ... 60 V
• Cable length
  2.5 m
• Cable diameter
  3.8 mm
• Degree of protection
  IP65 IP69K
• Special features
  Oil-resistant
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Contamination level
  3
• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
• Electrical connection 1, design
  Round
• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 2, number of pins/wires
  3
• Connector cable test conditions
  Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
• Cable diameter tolerance
  ± 0.1 mm
• Material of cable sheath
  TPE-U(PUR)
• Seals material
  NBR
Electrical connection 1, cable outlet
Angled
Electrical connection 1, occupied pins/wires
3
Electrical connection for input 1, connection pattern
00991871
Operating voltage range AC
0 V ... 60 V
Cable design
3 x 0.25 mm²
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Color cable sheath
Gray
Material of screw-type lock
Brass, nickel-plated
Material of pin contacts
Copper alloy, gold-plated
Cable designation
With 2x label holders
Electrical connection 1, connection type
Socket
Electrical connection 2, connection technology
Open end
Electrical connection 2, occupied pins/wires
3
Cable characteristic
Standard
Bending radius, flexible cable installation
39 mm
Nominal conductor cross section
0.25 mm²
Note on degree of protection
In mounted state
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Insulating sheath material
PP
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Electrical connection 1, function
Field device end
Electrical connection 2, function
Control side
Surge resistance
1.5 kV
Current rating at 40°C
3 A
Bending radius, fixed cable installation
12 mm
Ambient temperature
-25 °C ... 70 °C
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Housing material
TPE-U(PUR)
Housing colour
Black
