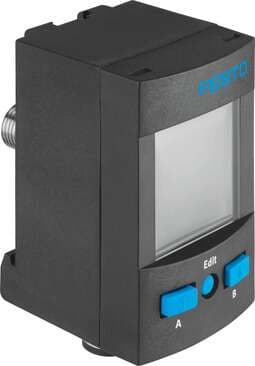

8001209 Festo Pressure Sensors

Product Details

• Displayable unit(s)
  MPa psi
• Pneumatic connection
  R1/4
• KC characters
  KC EMC
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Pressure measuring range end value
  10 bar
• Temperature of medium
  0 °C ... 50 °C
• Repetition accuracy in ± %FS
  0.3 %FS
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• Short-circuit protection
  yes
• Protocol
  IO-Link®
• IO-Link®, SIO mode support
  Yes
• IO-Link®, data memory required
  500 byte
• Method of measurement
  Piezoresistive pressure sensor
• ADC resolution
  12 bit
• Switching function
  Freely programmable
• Max. load resistance of current output
  500 Ohm
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• Reverse polarity protection
  for all electrical connections
• Display type
  Illuminated LCD
• Protection against tampering
  IO-Link® PIN code
Type code
SPAU
Symbol
00995410
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Pressure measuring range initial value
0 bar
Information on operating and pilot media
Operation with oil lubrication possible
Switching output
2 x PNP or 2 x NPN switchable
Analog output
0 - 10 V 1 - 5 V
IO-Link®, protocol version
Device V 1.1
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data width IN
2 Byte
IO-Link®, process data width OUT
0 Byte
DC operating voltage range
20 V ... 30 V
Setting options
IO-Link® Via display and pushbuttons
Setting range hysteresis
0 % ... 90 %
Electrical connection for input 1, connection pattern
00991171
Electrical connection 1, number of pins/wires
4
Note on materials
RoHS-compliant
Max. overload pressure
15 bar
Ambient temperature
0 °C ... 50 °C
Max. output current
100 mA
Switching element function
N/C contact/N/O contact switchable
Min. load resistance of voltage output
10 kOhm
IO-Link®, port class
A
IO-Link®, process data content IN
14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
Mounting position
Any
Setting range threshold value
0 % ... 100 %
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, connection type
Plug
Measured variable
Relative pressure
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Accuracy in ± % FS
1.5 %FS
Rise time
3 ms
IO-Link®, profile
Smart sensor profile
IO-Link®, minimum cycle time
3 ms
Type of mounting
With thread
Product weight
80 g
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Degree of protection
IP65 IP67

Related documents 8001209 Specs
