576094 Festo Pneumatic Actuators

576094 on Powermatic Associates
Festo

Part#:576094

Alt. Part#:DFSP-Q-20-15-PR-PA

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

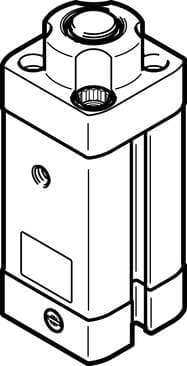

stopper cylinder DFSP-Q-20-15-PR-PA Stroke: 15 mm, Piston diameter: 20 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: (* single-acting, * pulling action)

Product Details

  • Pneumatic connection
    M5
  • Max. cycle rate
    5 Hz
  • Design
    Piston Anti-twist feature
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Mounting position
    Any
  • Operating pressure
    1.6 bar ... 10 bar
  • Type code
    DFSP
  • Position sensing
    For proximity sensor
  • Permissible impact force on the advanced piston rod
    840 N
  • Note on materials
    RoHS-compliant
  • Cover material
    Wrought aluminum alloy Anodized
  • Piston diameter
    20 mm
  • Symbol
    00995267
  • Protection against torsion/guide
    Flattened piston rod
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Permissible lateral force during switching operation
    200 N
  • Flange screws material
    Steel, galvanized
  • Stroke
    15 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Mode of operation
    Single-acting Pulling
  • Variants
    Piston rod secured against twisting
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 80 °C
  • Type of mounting
    Optionally: With accessories
  • Roller material
    Steel, galvanized
  • Seals material
    TPE-U(PU)
  • Material of cylinder barrel
    Wrought aluminum alloy Smooth anodized
  • Piston rod material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

576094 Related Documents

576094 DataSheet.pdf
