564813 Festo Pneumatic Fittings

564813 on Powermatic Associates
Festo

Part#:564813

Alt. Part#:QB-1/4H-1/8-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

9 in stock

Mar 14, 2025

Product description

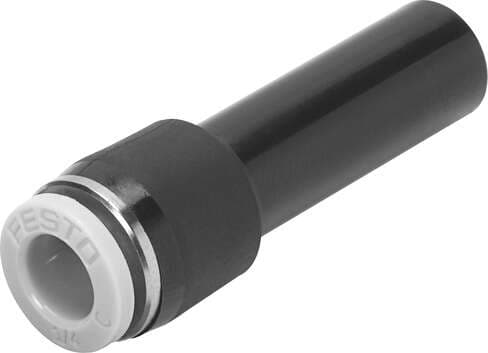

push-in connector QB-1/4H-1/8-U male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

Product Details

  • Size
    Standard
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 1/8"
  • Releasing ring material
    POM
  • Operating pressure for entire temperature range
    -0.951 bar ... 9.997 bar
  • Ambient temperature
    0 °C ... 60 °C
  • Releasing ring color
    Gray
  • Type code
    QB
  • Design
    Push-pull principle
  • Pneumatic connection 1
    For pneumatic tubing outside diameter 1/4"
  • Housing material
    PBT
  • Nominal width
    2.489 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Material of tubing seal
    NBR
  • Mounting position
    Any
  • Temperature-dependent operating pressure
    -0.951 bar ... 9.997 bar
  • Product weight
    3.997 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
