539639 Festo Pneumatic Components

539639 on Powermatic Associates
Festo

Part#:539639

Alt. Part#:VPPE-3-1/8-6-010

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

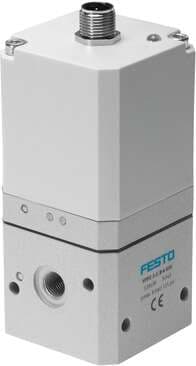

proportional pressure regulator VPPE-3-1/8-6-010 Pressure regulation with electrical setpoint specification, suitable for block mounting Nominal diameter, pressurisation: 5 mm, Nominal diameter, exhaust: 2,5 mm, Type of actuation: electrical, Sealing prin

Product Details

  • Linearity
    1 %FS
  • Nominal width pressurization
    5 mm
  • Operating pressure
    ≤ 8 bar
  • Max. pressure hysteresis
    0.15 bar
  • Short-circuit protection
    For all electrical connections
  • Valve function
    3-way proportional pressure control valve closed
  • On switching time
    550 ms
  • Max. electrical power consumption
    3.6 W
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Ambient temperature
    10 °C ... 50 °C
  • Note on materials
    RoHS-compliant
  • Exhaust nominal width
    2.5 mm
  • Safety instructions
    VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Temperature of medium
    10 °C ... 50 °C
  • Product weight
    445 g
  • Housing material
    Wrought aluminum alloy
  • Pneumatic connection 2
    G1/8
  • KC characters
    KC EMC
  • Hysteresis
    2.5 %FS
  • Pressure regulation range MPa
    0.015 MPa ... 0.6 MPa
  • Sealing principle
    Soft
  • Symbol
    00995303
  • Standard nominal flow rate
    850 l/min
  • Inlet pressure 1
    7 bar ... 8 bar
  • Residual ripple
    10 %
  • Setpoint/actual values
    Voltage type 0 - 10 V
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Electrical connection
    4-pin Round design
  • Diaphragm material
    NBR
  • Overall accuracy
    2.25 %FS
  • Reproducibility
    0.5 %FS
  • Inlet pressure 1 MPa
    0.6 MPa ... 0.8 MPa
  • Actuation type
    Electrical
  • Mounting position
    Any Preferably vertical
  • Reverse polarity protection
    for all electrical connections
  • Switching time off
    1300 ms
  • Max. current consumption
    150 mA
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Degree of protection
    IP65
  • Type of mounting
    With through-hole
  • Pneumatic connection 1
    G1/8
  • Type code
    VPPE
  • Design
    Pilot-controlled piston control valve
  • Pressure regulation range
    0.15 bar ... 6 bar
  • DC operating voltage range
    21.6 V ... 26.4 V
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature coefficient
    0.04 %/K

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
