539690 Festo Compressed Air Preparation Units

539690 on Powermatic Associates
Festo

Part#:539690

Alt. Part#:LFR-1/4-DB-7-5M-MINI-H

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

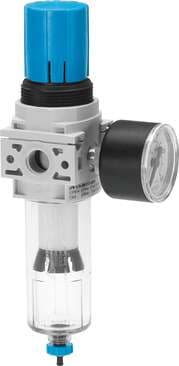

filter regulator LFR-1/4-DB-7-5M-MINI-H Output pressure max. 7 bar, with pressure gauge, 5 µ filtration grade. Size: Mini, Width: 44 mm, Series: DB, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°

Product Details

  • Series
    DB
  • Design
    Filter regulator with pressure gauge
  • Pressure regulation range
    0.5 bar ... 7 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Pneumatic connection 2
    G¼
  • Compressed air filter material
    PE
  • Size
    Mini
  • Mounting position
    Vertical +/- 5°
  • Symbol
    00991587
  • Standard nominal flow rate
    ≥ 1000 l/min
  • Temperature of medium
    -5 °C ... 50 °C
  • Pressure gauge connection
    G1/8
  • Seals material
    NBR
  • Actuator lock
    Rotary knob with detent
  • Controller function
    With secondary exhausting With return flow function
  • Max. pressure hysteresis
    0.5 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Type of mounting
    Optionally: With mounting bracket
  • Note on materials
    RoHS-compliant
  • Material of bowl
    PC
  • Type code
    LFR
  • Condensate drain
    Semi-automatic
  • Operating pressure
    0.15 MPa ... 1 MPa
  • Product weight
    200 g
  • Housing material
    PA-reinforced
  • Width
    44 mm
  • Grade of filtration
    5 µm
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Ambient temperature
    -5 °C ... 50 °C
  • Pneumatic connection 1
    G1/4
  • Rotary knob material
    POM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
