539636 Festo Grippers

539636 on Powermatic Associates
Festo

Part#:539636

Alt. Part#:HGP-16-A-B-SSK

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

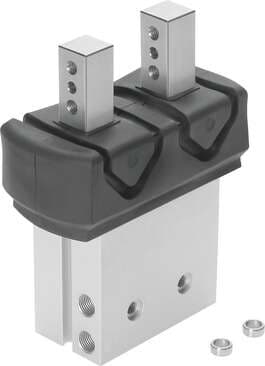

parallel gripper HGP-16-A-B-SSK self-centring, can be used as internal and external gripper, for position sensing, with protective dust cap. Size: 16, Stroke per gripper jaw: 5 mm, Max. replacement accuracy: 0,2 mm, Repetition accuracy, gripper: < 0,04 mm

Product Details

  • Stroke per gripper jaw
    5 mm
  • Mounting position
    Any
  • Total gripping force at 6 bar, closing
    160 N
  • Min. opening time at 6 bar
    44 ms
  • Pneumatic gripper repetition accuracy
    < 0.04 mm
  • Position sensing
    For proximity sensor
  • Operating pressure
    2 bar ... 8 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Type code
    HGP
  • Symbol
    00991894
  • Min. closing time at 6 bar
    60 ms
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    5 °C ... 60 °C
  • Maximum torque on gripper jaw, Mz static
    3.3 Nm
  • Note on materials
    Free of copper and PTFE
  • Housing material
    Aluminum Hard-anodized
  • Max. interchangeability
    0.2 mm
  • Gripper function
    Parallel
  • Design
    Lever
  • Maximum torque on gripper jaw, Mx static
    3.3 Nm
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Gripping force per gripper jaw at 6 bar, opening
    70 N
  • Maximum force on gripper jaw Fz, static
    90 N
  • Max. mass per external gripper finger
    40 g
  • Pneumatic connection
    M3
  • Product weight
    197 g
  • Size
    16
  • Number of gripper jaws
    2
  • Total gripping force at 6 bar, opening
    140 N
  • Max. operating frequency of pneumatic gripper
    4 Hz
  • Gripping force per gripper jaw at 6 bar, closing
    80 N
  • Type of mounting
    With internal thread and centering sleeve Via through-hole and centering sleeve
  • Gripper jaw material
    High-alloy steel
  • Degree of protection
    IP54
  • Mass moment of inertia
    0.47 kgcm²
  • Maximum torque on gripper jaw, My static
    3.3 Nm
  • Cover cap material
    TPV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

539636 Related Documents

539636 DataSheet.pdf
