531792 Festo Compressed Air Preparation Units
Part#:531792
Alt. Part#:MS4N-LRB-1/4-D5-A8-AS
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

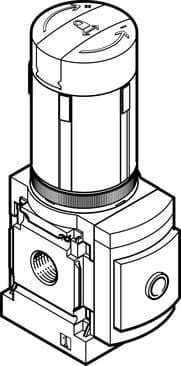

pressure regulator MS4N-LRB-1/4-D5-A8-AS For manifold assembly, maximum output pressure 4 bar, with adapter G1/8 for pressure gauge acc. to EN 837, port P2 on reverse side. Size: 4, Series: MS, Actuator lock: (* Rotary knob with lock, * with accessories,
Product Details
- Type code MS4N-LRB
- Design Directly controlled diaphragm regulator with continuous compressed air supply
- Pressure regulation range 0.3 bar ... 4 bar
- Product weight 222 g
- Material of operator panel PA POM
- Housing material Die-cast aluminum
- For use in the food industry See supplementary material information
- Series MS
- Mounting position Any
- Symbol 00995252
- Operating pressure 0.8 bar ... 14 bar
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 1/4 NPT
- Material of sub-base Die-cast aluminum
- Pressure gauge G1/8 prepared
- Max. pressure hysteresis 0.25 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Ambient temperature -10 °C ... 60 °C
- Seals material NBR
- Size 4
- Actuator lock Rotary knob with detent can be closed with accessories
- Controller function Outlet pressure constant With return flow function
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Storage temperature -10 °C ... 60 °C
- Pneumatic connection 2 1/4 NPT
- Standard nominal flow rate 1900 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Type of mounting Optionally: With accessories
- Note on materials RoHS-compliant
- Diaphragm material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
