531764 Festo Compressed Air Preparation Units

531764 on Powermatic Associates
Festo

Part#:531764

Alt. Part#:MS4N-LFX-1/4-R

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

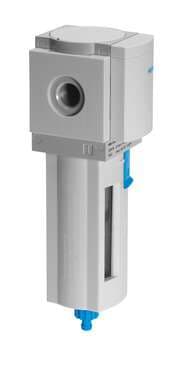

activated carbon filter MS4N-LFX-1/4-R Plastic bowl with plastic bowl guard, direction of flow: from left to right. Size: 4, Series: MS, Assembly position: Vertical +/- 5°, Design structure: Active carbon filter, Bowl guard: Plastic guard

Product Details

  • Mounting position
    Vertical +/- 5°
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    1/4 NPT
  • Type code
    MS4N-LFX
  • Design
    Active carbon filter
  • Operating pressure
    0 bar ... 14 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:4:1]
  • Residual oil content
    0.003 mg/m³
  • Compressed air filter material
    Activated carbon
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas
  • Temperature of medium
    5 °C ... 30 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Material of bowl
    PC
  • Series
    MS
  • Symbol
    00991519
  • Max. standard flow rate for air quality class
    360 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Die-cast aluminum
  • Size
    4
  • Bowl guard
    Plastic bowl guard
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    1/4 NPT
  • Product weight
    190 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
