531788 Festo Compressed Air Preparation Units
Part#:531788
Alt. Part#:MS4N-LRB-1/4-D6-AS-BI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

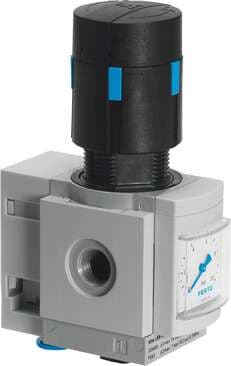

pressure regulator MS4N-LRB-1/4-D6-AS-BI For manifold assembly, angled outlet block with QS push-in connector, 7 bar maximum output pressure, with pressure gauge, P2 connection at rear. Size: 4, Series: MS, Actuator lock: (* Rotary knob with lock, * with
Product Details
- Size 4
- Series MS
- Operating pressure 0.8 bar ... 14 bar
- Max. pressure hysteresis 0.25 bar
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Housing material Die-cast aluminum
- Type code MS4N-LRB
- Mounting position Any
- Symbol 00995251
- Standard nominal flow rate 840 l/min
- Temperature of medium -10 °C ... 60 °C
- Type of mounting Optionally: With accessories
- Material of sub-base Die-cast aluminum
- Pressure gauge with pressure gauge
- Storage temperature -10 °C ... 60 °C
- Product weight 222 g
- Note on materials RoHS-compliant
- Diaphragm material NBR
- Design Directly controlled diaphragm regulator with continuous compressed air supply
- Controller function Outlet pressure constant With return flow function
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 2 QS-8
- Seals material NBR
- For use in the food industry See supplementary material information
- Actuator lock Rotary knob with detent can be closed with accessories
- Pressure regulation range 0.3 bar ... 7 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 1/4 NPT
- Material of operator panel PA POM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
