530042 Festo Stop Valves

Name: 530042
Brand: Festo

Part#:530042

Manufacturer:Festo

Alt. Part#:HGL-1/4-QS-10

Product Lifecycle:Active

Get a quick Quote!

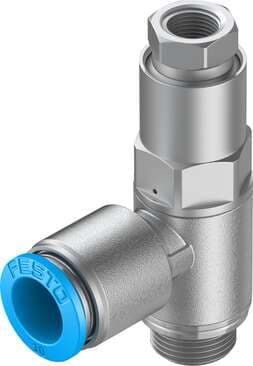

Piloted check valve HGL-1/4-QS-10 With sealing ring OL, with QS push-in fitting. Valve function: piloted non-return function, Pneumatic connection, port 1: QS-10, Pneumatic connection, port 2: G1/4, Type of actuation: pneumatic, Pilot air port 21: G1/8

About the manufacturer: Festo is one of the manufacturers that offers Stop Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 530042 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
HGL
Pneumatic connection 2
G¼
Pilot pressure
2 bar ... 10 bar
Symbol
00991456
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Nominal tightening torque
11 Nm
Seals material
NBR
Releasing ring material
POM
Pilot pressure psi
29 psi ... 145 psi
Actuation type
Pneumatic
Type of mounting
Screw-in With external thread
Mounting position
Any
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Hollow bolt material
Wrought aluminum alloy Anodized
Maritime classification
See certificate
Valve function
Unlockable non-return function
Ambient temperature
-10 °C ... 60 °C
Standard nominal flow rate 1->2 (6-5)
400 l/min
Storage temperature
-10 °C ... 60 °C
Product weight
45 g

Non-return collar material

NBR

Pilot pressure MPa

0.2 MPa ... 1 MPa

Pneumatic connection 1

QS-10

Pilot air port 21

G1/8

Standard flow rate 1->2 (6-0)

670 l/min

Temperature of medium

-10 °C ... 60 °C

Note on materials

Free of copper and PTFE RoHS-compliant

Operating pressure

0.5 bar ... 10 bar

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Tolerance for nominal tightening torque

± 10%

Swivel joint material

Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
