530043 Festo Stop Valves (non-return)

530043 on Powermatic Associates
Festo

Part#:530043

Alt. Part#:HGL-3/8-QS-8

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

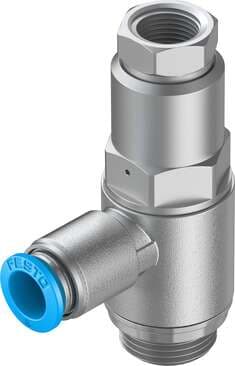

Piloted check valve HGL-3/8-QS-8 With sealing ring OL, with QS push-in fitting. Valve function: piloted non-return function, Pneumatic connection, port 1: QS-8, Pneumatic connection, port 2: G3/8, Type of actuation: pneumatic, Pilot air port 21: G1/4

Product Details

  • Pilot pressure psi
    14.5 psi ... 145 psi
  • Actuation type
    Pneumatic
  • Ambient temperature
    -10 °C ... 60 °C
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Tolerance for nominal tightening torque
    ± 10%
  • Hollow bolt material
    Wrought aluminum alloy Anodized
  • Pilot air port 21
    G1/4
  • Symbol
    00991456
  • Standard nominal flow rate 1->2 (6-5)
    830 l/min
  • Pilot pressure MPa
    0.1 MPa ... 1 MPa
  • Pneumatic connection 1
    QS-8
  • Maritime classification
    See certificate
  • Valve function
    Unlockable non-return function
  • Mounting position
    Any
  • Standard flow rate 1->2 (6-0)
    1200 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Swivel joint material
    Die-cast zinc
  • Type code
    HGL
  • Operating pressure
    0.5 bar ... 10 bar
  • Pneumatic connection 2
    G3/8
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Nominal tightening torque
    12.5 Nm
  • Releasing ring material
    POM
  • Type of mounting
    Screw-in With external thread
  • Pilot pressure
    1 bar ... 10 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Product weight
    54.7 g
  • Non-return collar material
    NBR
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
