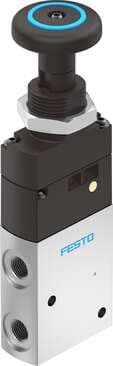

5299725 Festo Mechanical & Manual Valves
Part#:5299725
Alt. Part#:VHEF-PTC-B32-N14
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description
pushbutton valve VHEF-PTC-B32-N14 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: 0,35 - 1 MPa
Product Details
- Lap Zero overlap
- Width 20 mm
- Pneumatic working port 1/4 NPT
- Type code VHEF
- Mounting position Any
- Symbol 00995885
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Product weight 161 g
- Operating pressure 3.5 bar ... 10 bar
- Design Plate seat
- Application note Operate by hand only
- Manual override Detenting
- Flow direction Reversible
- Pilot pressure 3.5 bar ... 10 bar
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 1 1/4 NPT
- Housing material Wrought aluminum alloy, anodized
- Pilot air supply port Internal
- Max. switching frequency 0.5 Hz
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Release force 25 N
- Pneumatic connection 2 1/4 NPT
- Seals material NBR
- Valve function 3/2, bistable
- Standard nominal flow rate 870 l/min
- Exhaust air function With flow control option
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Actuating force 20 N
- Note on materials RoHS-compliant
- Cover material PA-reinforced
- Actuation type Manual
- Nominal width 6 mm
- Sealing principle Soft
- Type of control Pilot-controlled
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Ambient temperature -10 °C ... 60 °C
- Type of mounting Optionally: With through-hole
- Pneumatic connection 3 1/4 NPT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
