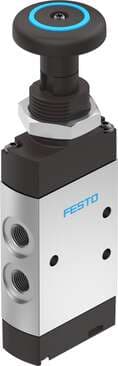

5299721 Festo Mechanical & Manual Valves

Product Details

• Operating pressure
  -0.95 bar ... 10 bar
• Reset method
  Mechanical spring
• Type of control
  Direct
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Type of mounting
  Optionally: With through-hole
• Pneumatic connection 5
  1/8 NPT
• Lap
  Overlap
• Width
  20 mm
• Sealing principle
  Soft
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Product weight
  182 g
• Pneumatic connection 3
  1/8 NPT
• Housing material
  Wrought aluminum alloy, anodized
• Valve function
  5/2, monostable
• Standard nominal flow rate
  750 l/min
• Exhaust air function
  With flow control option
• Flow direction
  Reversible
• Max. switching frequency
  0.5 Hz
• Ambient temperature
  -10 °C ... 60 °C
• Pneumatic connection 4
  1/8 NPT
Note on materials
RoHS-compliant
Cover material
PA-reinforced
Actuation type
Manual
Design
Piston gate valve
Nominal width
5.2 mm
Mounting position
Any
Symbol
00992163
Temperature of medium
-10 °C ... 60 °C
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 2
1/8 NPT
Seals material
NBR
Pneumatic working port
1/8 NPT
Type code
VHEF
Application note
Operate by hand only
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Actuating force
42 N
Pneumatic connection 1
1/8 NPT
