5299713 Festo Mechanical & Manual Valves

5299713 on Powermatic Associates
Festo

Part#:5299713

Alt. Part#:VHEF-PTC-B32-G14

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

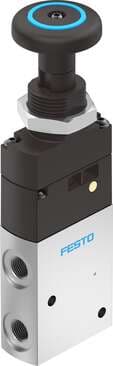

pushbutton valve VHEF-PTC-B32-G14 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: 0,35 - 1 MPa

Product Details

  • Pneumatic working port
    G1/4
  • Manual override
    Detenting
  • Pilot pressure
    3.5 bar ... 10 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/4
  • Housing material
    Wrought aluminum alloy, anodized
  • Lap
    Zero overlap
  • Nominal width
    6 mm
  • Sealing principle
    Soft
  • Max. switching frequency
    0.5 Hz
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    161 g
  • Seals material
    NBR
  • Actuation type
    Manual
  • Exhaust air function
    With flow control option
  • Type of control
    Pilot-controlled
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Optionally: With through-hole
  • Pneumatic connection 2
    G¼
  • Valve function
    3/2, bistable
  • Operating pressure
    3.5 bar ... 10 bar
  • Standard nominal flow rate
    870 l/min
  • Design
    Plate seat
  • Mounting position
    Any
  • Flow direction
    Reversible
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Actuating force
    20 N
  • Pneumatic connection 3
    G1/4
  • Cover material
    PA-reinforced
  • Width
    20 mm
  • Type code
    VHEF
  • Application note
    Operate by hand only
  • Pilot air supply port
    Internal
  • Symbol
    00995885
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Release force
    25 N
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

5299713 Related Documents

5299713 DataSheet.pdf
