526660 Festo Pneumatic Components

Name: 526660
Brand: Festo

Part#:526660

Alt. Part#:DGPL-32-1000-PPV-A-B-KF

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

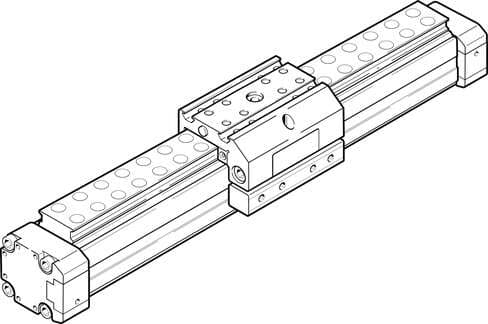

linear drive DGPL-32-1000-PPV-A-B-KF For proximity sensing, rodless, with positive-locking connection between piston and driver and adjustable end-position cushioning at both ends. Stroke: 1000 mm, Piston diameter: 32 mm, Cushioning: (* PPV: Pneumatic cus

Product Details

Type code
DGPL
Mode of operation
Double-acting
Theoretical force at 6 bar, advancing
483 N
Pneumatic connection
G1/8
Alternative connections
See product drawing
Cushioning
Pneumatic cushioning, adjustable at both ends Pneumatic shock absorber, hard characteristic curve
Driver principle
Positive locking (slot)
Basic weight with 0 mm stroke
2720 g
Cover material
Cast aluminum Coated
Stroke
1000 mm
Mounting position
Any
Position sensing
For proximity sensor
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
-10 °C ... 60 °C
Theoretical force at 6 bar, retracting
483 N
Additional moving mass per 10 mm stroke
69 g
Seals material
NBR TPE-U(PU)
Operating pressure
0.2 MPa ... 0.8 MPa
Corrosion resistance class (CRC)
0 - No corrosion stress
Cushioning length
20 mm

Moving mass

890 g

Piston diameter

32 mm

Guide

Recirculating ball bearing guide

Symbol

00991254

Operating medium

Compressed air as per ISO 8573-1:2010 [7:-:-]

Moving mass at 0 mm stroke

890 g

Housing material

Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

526660 Related Documents

526660 DataSheet.pdf

Similar products from: Festo Pneumatic Components

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

1 in stock

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock

558808

Festo

push-in bulkhead connector NPQM-H-Q8-E-P10 Size: Standard, Nominal size: 7 mm, Design structure: Push/pull principle, Operating pressure complete temperature range: -0,95 - 16 bar, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-]

1 in stock

Manufacturer warranty

526660 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 526660 with other Pneumatic Components products

Type code

Mode of operation

Theoretical force at 6 ba...

Pneumatic connection

Alternative connections

Cushioning

Driver principle

Basic weight with 0 mm st...

Cover material

Stroke

Selected product

Backordered

526660

Festo

linear drive DGPL-32-1000-PPV-A-B-KF For proximity sensing, rodless, with positive-locking connectio...

Type codeDGPL

Mode of operationDouble-acting

Theoretical force at 6 bar, advancing483 N

Pneumatic connectionG1/8

Alternative connectionsSee product drawing

CushioningPneumatic cushioning, adjust...

Driver principlePositive locking (slot)

Basic weight with 0 mm stroke2720 g

Cover materialCast aluminum Coated

Stroke1000 mm

95 in stock

15037

Festo

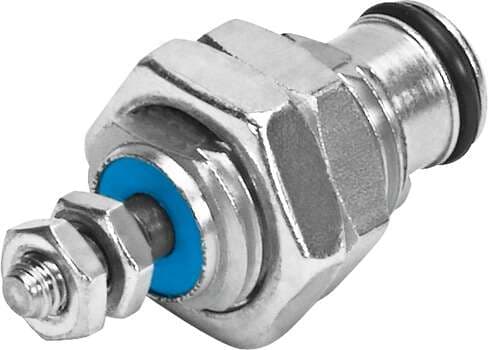

cartridge cylinder EGZ-10-10 With double-ended male thread on cylinder housing . Stroke: 10 mm, Pist...

Type codeEGZ

Mode of operationSingle-acting Pushing

Theoretical force at 6 bar, advancing-

Pneumatic connection-

Alternative connections-

CushioningNo cushioning

Driver principle-

Basic weight with 0 mm stroke-

Cover material-

Stroke10 mm

6 in stock

10837

Festo

solenoid valve MOFH-3-1/4-NPT With manual override, without solenoid coil or socket. Solenoid coil a...

Type codeMOFH

Mode of operation-

Theoretical force at 6 bar, advancing-

Pneumatic connection-

Alternative connections-

Cushioning-

Driver principle-

Basic weight with 0 mm stroke-

Cover material-

Stroke-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Components that are pneumatic are crucial elements of a pneumatic system, using compressed air to manage movements and carry out a range of tasks in industries like manufacturing, construction, and automation.

Relevant products

526622

Verified stock: 12

proximity sensor SME-8-SL-LED-24 Electric, with reed contact, for drives with T-slot, with M8 plug. Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Material

Festo

526665

Verified stock: 0

linear drive DGPL-40-250-PPV-A-B-KF For proximity sensing, rodless, with positive-locking connection between piston and driver and adjustable end-position cushioning at both ends. Stroke: 250 mm, Piston diameter: 40 mm, Cushioning: (* PPV: Pneumatic cushi

Festo

526649

Verified stock: 0

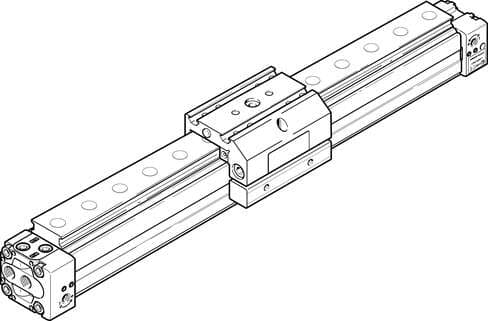

linear drive DGPL-25-250-PPV-A-B-KF For proximity sensing, rodless, with positive-locking connection between piston and driver and adjustable end-position cushioning at both ends. Stroke: 250 mm, Piston diameter: 25 mm, Cushioning: (* PPV: Pneumatic cushi

Festo

5266781

Verified stock: 0

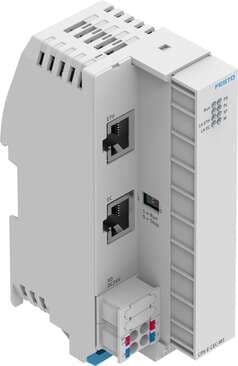

controller CPX-E-CEC-M1 Dimensions W x L x H: 42,2 mm x 125,8 mm x 76,5 mm, Grid dimension: 18,9 mm, CPU data: (* 512 MB RAM, * Dual Core 666 MHz), Diagnostics via LED: (* Force mode, * Network status engineering port 1, * Network status EtherCAT®, * Run,
