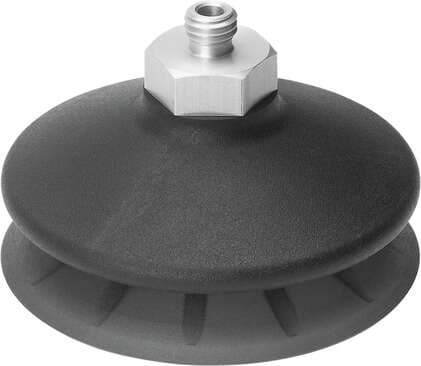

525997 Festo Vacuum Cups

Name: 525997
Brand: Festo

Part#:525997

Alt. Part#:ESS-80-BT-M10

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

suction cup ESS-80-BT-M10 easily interchangeable, Height compensator for suction-cup holder: 10,5 mm, Min. workpiece radius: 100 mm, Nominal size: 2,5 mm, suction cup diameter: 80 mm, suction cup volume: 59,1 cm3

Product Details

Nominal width
2.5 mm
Mounting position
Any
Nominal operating pressure
-0.7 bar
Holding force at nominal operating pressure
237 N
Color
Reddish brown
Suction cup volume
59.1 cm³
Operating pressure
-0.95 bar ... 0 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Lateral force at nominal operating pressure
102 N
Shore hardness
72 +/- 5
Suction cup shape
Round bellows, 1.5 convolutions
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Product weight
84.5 g
Note on materials
Free of copper and PTFE RoHS-compliant
Min. workpiece radius
100 mm
Type code
ESS
Ambient temperature
-10 °C ... 80 °C
Vacuum connection
M10
Material of screwed trunnion
Wrought aluminum alloy
Suction cup holder height compensator
10.5 mm

Suction cup diameter

80 mm

Symbol

00991485

Classification of suction cup holder

Size 5

Type of mounting

Via vacuum connection

Suction cup material

Vulkollan®

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

525997 Related Documents

525997 DataSheet.pdf
