525995 Festo Vacuum Cups

525995 on Powermatic Associates
Festo

Part#:525995

Alt. Part#:ESS-50-BT-G1/4-I

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

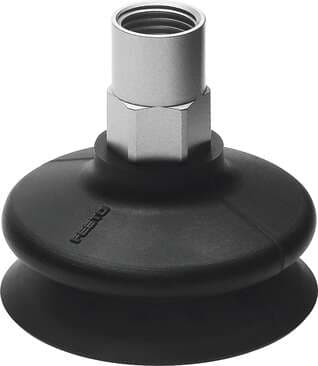

suction cup ESS-50-BT-G1/4-I easily interchangeable, Height compensator for suction-cup holder: 10 mm, Min. workpiece radius: 40 mm, Nominal size: 2,5 mm, suction cup diameter: 50 mm, suction cup volume: 17,6 cm3

Product Details

  • Min. workpiece radius
    40 mm
  • Mounting position
    Any
  • Color
    Reddish brown
  • Suction cup diameter
    50 mm
  • Symbol
    00991485
  • Operating pressure
    -0.95 bar ... 0 bar
  • Ambient temperature
    -10 °C ... 80 °C
  • Type of mounting
    Via vacuum connection
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Nominal width
    2.5 mm
  • Suction cup volume
    17.6 cm³
  • Operating medium
    Atmospheric air based on ISO 8573-1:2010 [7:-:-]
  • Lateral force at nominal operating pressure
    39 N
  • Material of screwed trunnion
    Wrought aluminum alloy
  • Suction cup holder height compensator
    10 mm
  • Type code
    ESS
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Holding force at nominal operating pressure
    100 N
  • Shore hardness
    72 +/- 5
  • Vacuum connection
    G1/4
  • Suction cup shape
    Round bellows, 1.5 convolutions
  • Nominal operating pressure
    -0.7 bar
  • Product weight
    25 g
  • Suction cup material
    Vulkollan®

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
