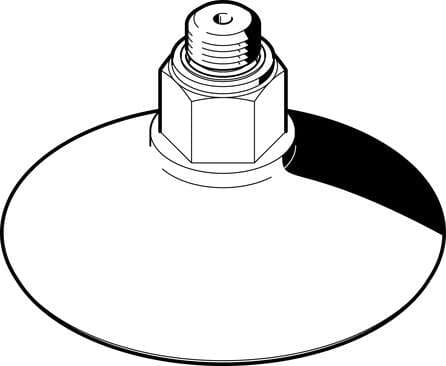

525979 Festo Vacuum Cups

Name: 525979
Brand: Festo

Part#:525979

Alt. Part#:ESS-50-GT-G1/4

Manufacturer:Festo

Category:Vacuum Cups

Product Lifecycle:Active

Product description

suction cup ESS-50-GT-G1/4 easily interchangeable, Height compensator for suction-cup holder: 8 mm, Min. workpiece radius: 40 mm, Nominal size: 2,5 mm, suction cup diameter: 50 mm, suction cup volume: 11,2 cm3

Product Details

Min. workpiece radius
40 mm
Mounting position
Any
Operating medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Ambient temperature
-10 °C ... 80 °C
Type of mounting
Via vacuum connection
Nominal width
2.5 mm
Symbol
00991485
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Color
Reddish brown
Suction cup material
Vulkollan®
Lateral force at nominal operating pressure
30 N
Shore hardness
72 +/- 5
Suction cup diameter
50 mm
Type code
ESS
Operating pressure
-0.95 bar ... 0 bar
Nominal operating pressure
-0.7 bar
Vacuum connection
G1/4
Note on materials
Free of copper and PTFE RoHS-compliant
Suction cup holder height compensator
8 mm
Suction cup volume
11.2 cm³

Suction cup shape

Round, deep

Holding force at nominal operating pressure

97 N

Product weight

21 g

Material of screwed trunnion

Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
