525223 Festo Pneumatic Valves Accessories

525223 on Powermatic Associates
Festo

Part#:525223

Alt. Part#:MHA3-PR6-3-1/8

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

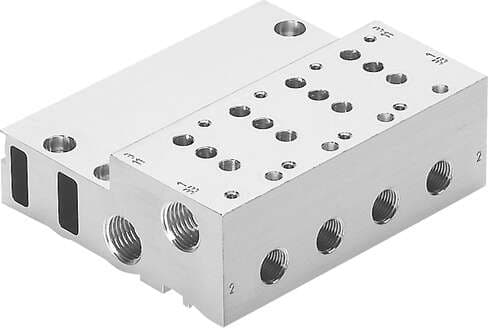

manifold block MHA3-PR6-3-1/8 for manifold block valves MHA3-...-HC/TC Max. number of valve positions: 6, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Mounting method for sub-base: (* with through hole, * with top-hat rail), Mou

Product Details

  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type code
    MH3
  • Pneumatic connection 2
    Internal thread G1/8
  • Pneumatic valve mounting type
    With internal thread
  • Pneumatic connection 1/33
    G1/4
  • Sub-base mounting type
    With through-hole With H-rail
  • Note on materials
    Free of copper and PTFE
  • Max. no. of valve positions
    6
  • Pneumatic connection 3/11
    G1/4
  • Material of sub-base
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
