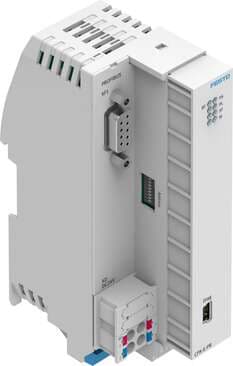

4080496 Festo Pneumatic Components

Product Details

• Fieldbus interface, connection type
  Socket
• Fieldbus interface, connection pattern
  00995638
• Power supply, function
  Electronics and sensors
• Permissible voltage fluctuations for electronics/sensors
  ± 25 %
• Fieldbus interface, connection technology
  Sub-D
• KC characters
  KC EMC
• Nominal operating voltage DC for electronics/sensors
  24 V
• Power supply, conductor diameter
  0.2 mm² ... 1.5 mm²
• Configuration support
  GSD file
• Certificate issuing authority
  UL E239998
• Storage temperature
  -20 °C ... 70 °C
• Power supply, type of connection
  Terminal strip
• Note on ambient temperature
  -5 - 60 °C for vertical installation
• Intrinsic current consumption at nominal operating voltage for electronics/sensors
  Typically 75 mA
• Diagnostics via bus
  Wire break Not ready for data exchange
• System parameter
  Diagnostic memory System start
• Diagnostics via LED
  Bus error System fault
• Fieldbus interface, number of poles/wires
  9
• Max. number of modules
  10
• Control elements
  DIL switch
Power failure buffering
20 ms
Protection against direct and indirect contact
PELV
Product weight
145 g
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Note on fieldbus interface
Optional connection technology with accessories: Plug/socket M12x1 B-coded, 5-pin, degree of protection: IP65
Fieldbus interface, function
Bus connection, incoming/forwarding
Service interface, connection pattern
00995868
Service interface, function
Diagnostics and parameterization
Module parameters
Undervoltage diagnostics Analog module process value representation
Power supply, number of pins/wires
4
Ambient temperature
-5 °C ... 50 °C
Max. address capacity inputs
64 byte
Type of mounting
With H-rail
Dimensions W x L x H
42.2 mm x 125.8 mm x 76.5 mm
Service interface, connection technology
USB 2.0 type B, mini
Power supply, information on conductor diameter
0.2 - 2.5 mm² for flexible conductors without cable end sleeves
Fieldbus interface, protocol
PROFIBUS DP
Shock resistance
Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Fieldbus interface, max. address volume for outputs
64 byte
Width dimension
18.9 mm
Max. power supply
8 A
Corrosion resistance class (CRC)
0 - No corrosion stress
Relative air humidity
95 % Non-condensing
Fieldbus interface, galvanic isolation
yes
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Power supply, connection pattern
00995847
Service interface, connection type
Socket
Power supply, connection technology
Spring-loaded terminal
Service interface, number of poles/wires
5
Fieldbus interface, max. address volume for inputs
64 byte
Type code
CPX-E
CE marking (see declaration of conformity)
As per EU EMC directive
Degree of protection
IP20
Note on outputs
62 bytes with I/O diagnostic interface 64 bytes without diagnostics
Fieldbus interface, type
PROFIBUS
Housing material
PA
Certification
RCM compliance mark c UL us - Listed (OL)
Max. address capacity outputs
64 byte
Information on inputs
62 bytes with I/O diagnostic interface 64 bytes without diagnostics
Fieldbus interface, transmission rate
9.6 kbit/s 12 Mbit/s
