3714 Festo Pneumatic Fittings

3714 on Powermatic Associates
Festo

Part#:3714

Alt. Part#:ACK-1/8-PK-4

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

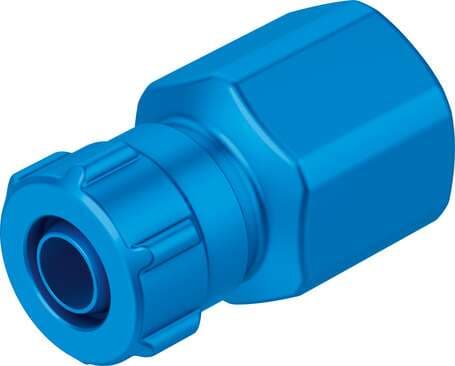

quick connector ACK-1/8-PK-4 Female thread with sealing ring. Nominal size: 3,4 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordance with ISO85

Product Details

  • Type code
    ACK
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 6 mm
  • Maritime classification
    See certificate
  • Housing material
    Aluminum
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Note on materials
    RoHS-compliant
  • Nominal width
    3.4 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Pneumatic connection 1
    Internal thread G1/8
  • Ambient temperature
    -10 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
