2272 Festo Mechanical & Manual Valves

Name: 2272
Brand: Festo

Part#:2272

Alt. Part#:RS-3-1/8

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

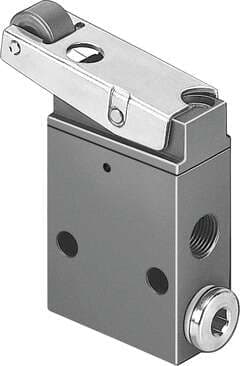

roller lever valve RS-3-1/8 Indirectly actuated. Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Standard nominal flow rate: 151 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

Product Details

Pneumatic working port
G1/8
Reset method
Mechanical spring
Mounting position
Any
Nominal width
3.5 mm
Type of control
Pilot-controlled
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
G1/8
Housing material
Aluminum Anodized
Actuation type
Mechanical
Type code
RS
Pilot air supply port
Internal
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-]
Pneumatic connection 3
G1/8
Standard nominal flow rate
151 l/min
Design
Plate seat
Sealing principle
Soft
Symbol
00991111
Ambient temperature
-10 °C ... 60 °C
Actuating force
1.73 N

Note on materials

RoHS-compliant

Valve function

3/2, closed, monostable

Operating pressure

3.5 bar ... 8 bar

Exhaust air function

With flow control option

Flow direction

Non-reversible

Pilot medium

Compressed air as per ISO 8573-1:2010 [-:-:-]

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Type of mounting

With through-hole

Seals material

NBR

Note on forced dynamization

Switching frequency min. 1/year

Temperature of medium

-10 °C ... 60 °C

Product weight

104 g

Pneumatic connection 2

G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
