2270 Festo Mechanical & Manual Valves
Part#:2270
Alt. Part#:ROS-3-1/8
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

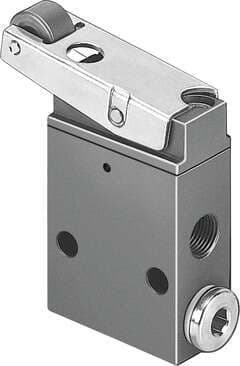

roller lever valve ROS-3-1/8 Piloted, normally open. Valve function: 3/2 open, monostable, Type of actuation: mechanical, Standard nominal flow rate: 169 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat
Product Details
- Pneumatic connection 2 G1/8
- Pneumatic working port G1/8
- Exhaust air function With flow control option
- Symbol 00991112
- Temperature of medium -10 °C ... 60 °C
- Actuating force 1.9 N
- Standard nominal flow rate 169 l/min
- Operating pressure 3.5 bar ... 8 bar
- Nominal width 3.5 mm
- Type of control Pilot-controlled
- Flow direction Non-reversible
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 G1/8
- Note on materials RoHS-compliant
- Pilot air supply port Internal
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 104 g
- Pneumatic connection 3 G1/8
- Housing material Aluminum Anodized
- Valve function 3/2, open, monostable
- Design Plate seat
- Type code ROS
- Sealing principle Soft
- Pilot medium Compressed air as per ISO 8573-1:2010 [-:-:-]
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-]
- Type of mounting With through-hole
- Actuation type Mechanical
- Reset method Mechanical spring
- Mounting position Any
- Note on forced dynamization Switching frequency min. 1/year
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
