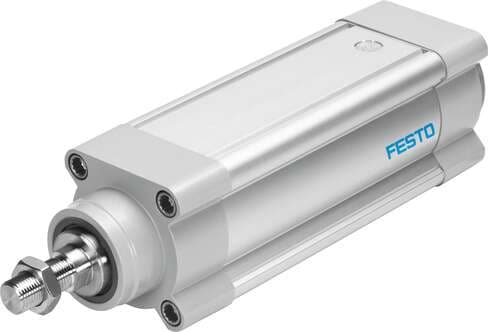

2215384 Festo Electric Actuators

Product Details

• Type code
  ESBF
• Stroke
  200 mm
• Screw diameter
  12 mm
• Position sensing
  For proximity sensor
• Max. speed
  0.56 m/s
• Duty cycle
  100%
• Relative air humidity
  0 - 95 %
• Size
  32
• Based on norm
  ISO 15552
• Piston rod end
  External thread
• Protection against torsion/guide
  With plain-bearing guide
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Max. radial force on actuator shaft
  115 N
• Guide value for payload, horizontal
  100 kg
• No-load driving torque
  0.1 Nm
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Material of cylinder barrel
  Wrought aluminum alloy, smooth-anodized
• Piston rod thread
  M10x1.25
• Spindle pitch
  5 mm/U
• Symbol
  00991941
Storage temperature
-20 °C ... 60 °C
Degree of protection
IP40
Additional weight per 10 mm stroke
33 g
Reversing backlash
30 µm
Max. angle of rotation of the piston rod +/-
0.25 deg
Motor type
Stepper motor Servo motor
Design
Electric actuator with ball screw
For use in the food industry
See supplementary material information
Guide value for payload, vertical
100 kg
Basic weight with 0 mm stroke
781 g
Interface code, actuator
D32
Piston rod material
High-alloy stainless steel
Mounting position
Any
Spindle type
Ball screw
Repetition accuracy
±0.01 mm
Max. acceleration
5 m/s²
Max. driving torque
1.1 Nm
Ambient temperature
0 °C ... 60 °C
Mass moment of inertia JL per kg of payload
0.0063 kgcm²
Type of mounting
With internal thread or accessory
Cover material
Smooth anodized
Max. feed force Fx
1000 N
Mass moment of inertia JH per meter of stroke
0.122 kgcm²
Mass moment of inertia JO
0.023 kgcm²
Additional moving mass per 10 mm stroke
9 g
Spindle material
Roller bearing steel
Moving mass at 0 mm stroke
281 g
Spindle nut material
Roller bearing steel
Material of screws
Steel, galvanized
